Description:

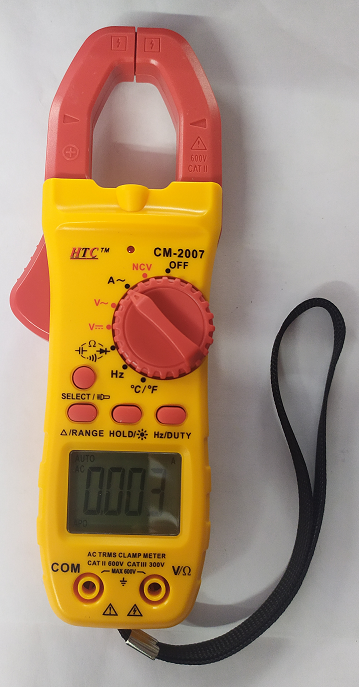

The CM 2007 is a versatile AC clamp meter from HTC Instrument that measures a wide range of electrical parameters without breaking the circuit. It uses a hinged jaw to clamp around a conductor and directly measure current. In addition, you can use the test leads to measure voltage and resistance with accuracy and ease.
Key features:
- True RMS: This function ensures accurate readings even with distorted or non-sinusoidal waveforms, which is critical for modern electrical equipment and variable frequency drives.
- Non-Contact Voltage (NCV) detection: The meter can safely detect the presence of live voltage in a conductor without physical contact, providing an extra layer of safety.
- Built-in flashlight and backlight: These features ensure that the meter’s LCD screen and the area being tested are visible in dark or low-light conditions.
-
Auto and manual ranging: This feature allows the user to choose between two modes. For instance, the meter can automatically select the correct measurement range, which makes testing faster. Alternatively, the user can set the range manually for specific tests, so they gain greater control and precision.
Data hold: This function freezes the displayed reading, therefore making it easier to record values in hard-to-reach areas. Moreover, it lets you view the measurement later without rushing, and this ensures both convenience and accuracy.
- Auto power-off: To save battery life, the meter automatically shuts down after a period of inactivity.
Measurement capabilities:
- AC Current: Up to 600A
- DC and AC Voltage: Up to 600V
- Resistance: Up to 40MΩ
- Capacitance: Up to 40mF
- Frequency: Up to 10MHz
- Temperature: From -40°C to 1000°C (-40°F to 1832°F)
Applications:
- Electrical installation and maintenance: For testing circuits and troubleshooting problems in residential, commercial, and industrial settings.
- HVAC servicing: Used for diagnostics on heating, ventilation, and air conditioning equipment.
- Automotive repairs: Capable of measuring both AC and DC, the meter can be used to test vehicle electrical systems.
- Industrial equipment: For testing machinery, motors, and controls.
