CLAMP METER AC BM 528F In Pakistan

Description:

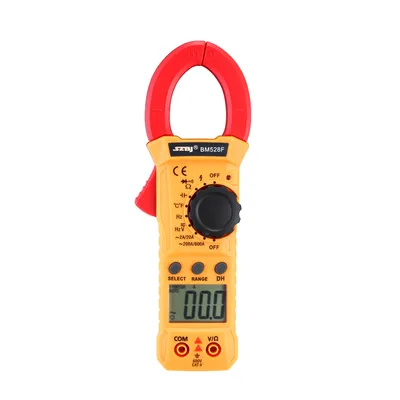

The SZBJ BM 528F is a digital AC clamp meter, also referred to as a clamp multimeter. The device is used by technicians and hobbyists for measuring AC/DC voltage, AC current, resistance, capacitance, frequency, and temperature. It has a jaw opening of 30mm for measuring current without breaking the circuit

• • True RMS: The meter offers True RMS (Root Mean Square) measurement for both AC voltage and current. This provides accurate readings for non-linear loads.
  • Non-Contact Voltage (NCV) testing: A built-in function allows you to detect the presence of voltage without making contact with the conductors.
  • Automatic and manual ranging: The BM 528F includes both auto-ranging and manual ranging capabilities, giving you more control and faster measurements.
  • Data hold: The display can be frozen to hold a reading for convenient recording.
  • LCD backlight: A backlight makes the display easy to read in dimly lit areas.
  • Automatic power off: The meter powers down automatically after 10 minutes of inactivity to conserve battery life.
  • Overload protection: This safety feature protects the device from damage caused by excessive electrical input.
  • Diode and continuity testing: The meter can test diodes and has a buzzer for continuity checks.

• Maximum display: 1999 (3 1/2 digits).
• DC voltage: Ranges from 200mV to 1000V with an accuracy of



  ±plus or minus

  ±

  (0.8%+2).

• AC voltage: Ranges from 2V to 700V with an accuracy of



  ±plus or minus

  ±

  (1.2%+5).

• AC current: Ranges from 2A to 600A with an accuracy of



  ±plus or minus

  ±

  (2%+10).

• Resistance (



  Ωcap omega

  Ω

  ): Ranges from 200



  Ωcap omega

  Ω

  to 20M



  Ωcap omega

  Ω

  with an accuracy of



  ±plus or minus

  ±

  (1%+3).

• Capacitance: Ranges from 20nF to 2mF with an accuracy of



  ±plus or minus

  ±

  (3%+5).

• Frequency: Ranges from 200Hz to 20MHz with an accuracy of



  ±plus or minus

  ±

  (0.5%+3).

• Temperature: Ranges from -50°C to 1000°C and -58°F to 1832°F.
• Power supply: Two AAA 1.5V batteries.
• Jaw size: $\phi$30mm.
• Safety rating: CAT II 600V.
