Description:

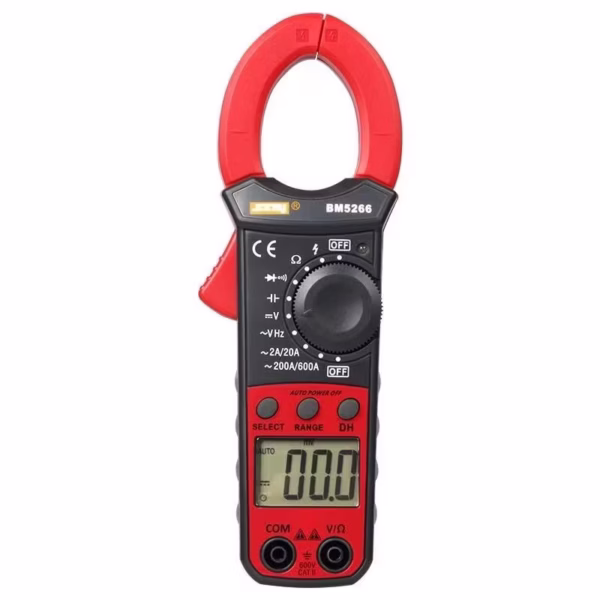

The BM 5266 AC clamp meter is a digital multimeter designed for electricians and hobbyists to measure various electrical parameters safely and efficiently. Its most important function is measuring AC current without needing to disconnect the circuit, and it achieves this using a hinged jaw that clamps securely around a live conductor. Moreover, this design allows users to test safely while maintaining efficiency. Therefore, it becomes an essential tool for both professionals and DIY users.
Key specifications:
- Measurement functions: AC/DC voltage, AC current, resistance, capacitance, diode, and continuity.
- AC current range: Up to 600A.
- True RMS: This feature ensures accurate measurement of AC current and voltage, even with non-sinusoidal waveforms.
- Display: 1999-count digital display.
- Jaw size: 30mm.
- Safety rating: CAT.II 600V, with overload protection for all ranges.
- Additional features:
- Data hold to freeze a reading on the display.
- Automatic power-off function.
- Low battery indication.
- Phase line recognition.
Primary uses:
- Troubleshooting: Identifying electrical faults in equipment, circuits, and appliances.
- Installation: Testing new circuits and supervising work by apprentice electricians.
- Maintenance: Performing preventative maintenance and monitoring electrical systems in residential, commercial, and industrial environments.
How it works:
- Current measurement: The meter’s hinged jaw senses the magnetic field produced by current flowing through a conductor. To measure, clamp the jaw around a single, insulated wire. For three-phase systems, you must measure each wire individually.
- Voltage and other measurements: For functions like voltage, resistance, and capacitance, you use the included test probes just like a standard multimeter.
Safety and advantages:
- Safety: Clamp meters are inherently safer for measuring high currents than standard multimeters, which require the circuit to be broken for in-line measurement.
- Convenience: Measurements can be taken on live circuits without powering them down, greatly improving efficiency for maintenance and troubleshooting.
- Versatility: As a digital clamp multimeter, the BM 5266 includes most basic functions of a digital multimeter (DMM), providing a versatile tool for many electrical applications
