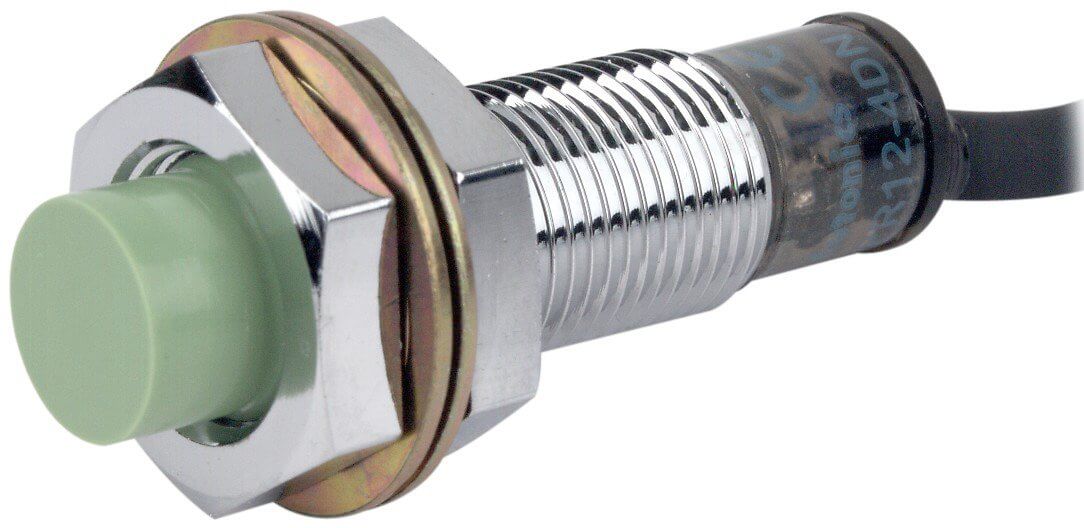

Npn Pr12-4dn Autonics Cylindrical Inductive Proximity Sensor

Description:

The Autonics PR12-4DN DC10~30V 4mm M12 Inductive Proximity Sensor (NPN-NO series) delivers superior noise resistance with a dedicated self-developed IC. Moreover, its wide lineup in size and sensing distance makes it suitable for a variety of applications where proximity sensors are required.

This inductive proximity sensor actively generates an electromagnetic field to detect metal objects with precision. In addition, it features a built-in sensitivity adjustment and enables reliable no-touch object detection. While inductive sensors rely on magnetic fields, capacitive sensors instead use electric fields. Therefore, conductive objects interact with inductive sensors, whereas capacitive sensors can detect both conductive and dielectric materials.

Since inductive sensors primarily detect metal, they are ideal for industrial environments. On the other hand, capacitive sensors expand versatility by sensing non-metallic objects such as plastic, glass, or liquid. Consequently, users can choose between inductive and capacitive options depending on their project requirements.

Features Of Inductive Distance NPN Proximity Sensor:

• Improve the noise resistance by adopting dedicated
• The built-in protection circuit of reverse power polarity (DC 3-wire type)
• The built-in surge protection circuit
• Built-in overcurrent protection circuit (DC type)
• Good performance of anti-interference.
• Many output forms
• High on-off frequency.
• IP67 protection structure (IEC standard).
• Replaceable for micro switches and limit switches.

Specifications Of PR12 4DN Autonics Cylindrical type proximity Sensor:

1. Type: Cylindrical round (PR Series)
2. Sensing Distance: 4mm
3. Header dimension / square : 12mm
4. Shield: Non-Shield
5. Connection Type: 2m cable loose end
6. Voltage: 12 – 24 VDC
7. Wire Type: DC 3-wire
8. Output Type : NPN  2- 100mA
9. Frequency: 500Hz

Package Include:

• 1x Inductive Proximity Sensor
