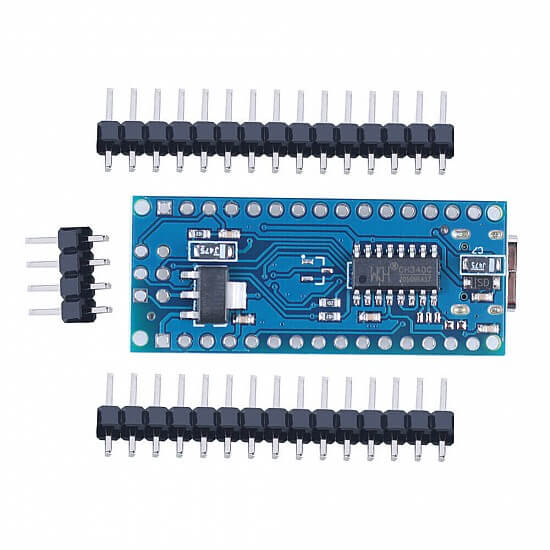

Arduino Nano V3

Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Specifications of Nano V3 :

1. Microcontroller: ATmega328 (Arduino nano).
2. Operating Voltage (logic level): l5 V.
3. Input Voltage (recommended): 7-12 V.
4. Input Voltage (limits): 6-20 V.
5. Digital I/O Pins: 14 (of which 6 provide PWM output).
6. Analog Input Pins: 8.
7. DC Current per I/O Pin: 40 mA.
8. Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB is used by the boot loader.
9. SRAM: 1 KB (ATmega168) or 2 KB (ATmega328).
10. EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
11. Clock Speed: 16 MHz.
12. Dimensions: 0.73″ x 1.70″.
13. Length: 45 mm.
14. Width: 18 mm.
15. Weight: 5 g.

Features of Arduino Nano V3;

• Automatic reset during program download
• Power OK blue LED
• Green (TX), red (RX), and orange (L) LED
• Auto-sensing/switching power input
• Small mini-B USB for programming and serial monitor
• ICSP header for direct program download
• Standard 0.1” spacing DIP (breadboard friendly)
• Manual reset switch

Related Documents:

1. IC CH340G Datasheet here
2. IC Atmel ATmega328 Datasheet here

Package Includes:

• 1 x  Arduino Nano V3 Arduino Nano

Youtube Tutorial:

https://www.youtube.com/watch?v=R102xfcx75
