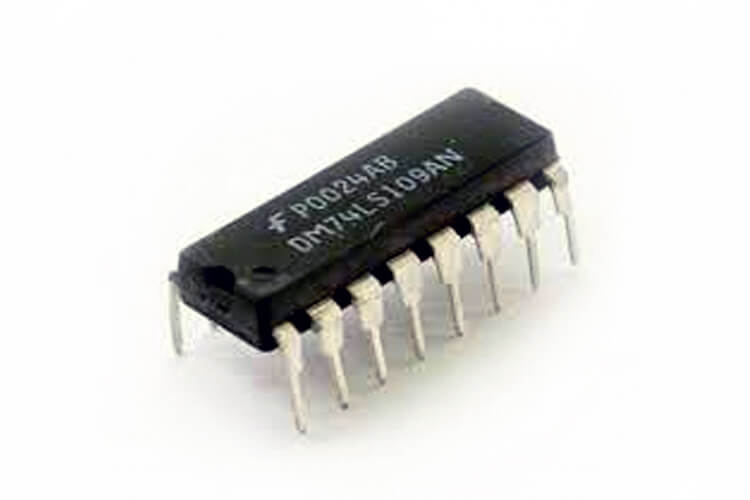

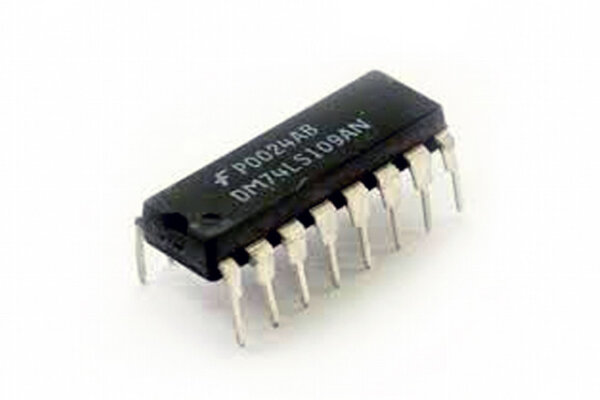

74ls109 Ic

Features and Specifications

Here are some important features and specifications of the 74LS109 IC.

1. Positive Triggering edge
2. Operating Voltage: 4.75V – 5.25V DC
3. Frequency at normal voltage (Max): 35MHz
4. Propagation delay (Max): 20ns
5. High Output Current: 8 mA
6. Low Output Current: 0.4 mA
