Description:

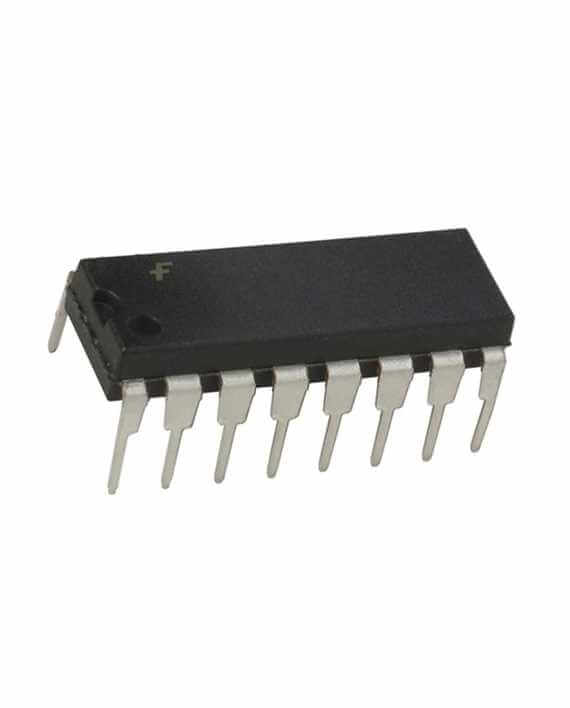

This Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three-bit binary code at the Select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at the high level, disables all data inputs and forces the Y output to the low state and the W output to the high state. The Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. RoboticsBD
Features:
- Advanced oxide-isolated, ion-implanted Schottky TTL process
- Switching performance is guaranteed over full temperature and VCC supply range
- Pin and functional compatible with LS family counterpart
- Improved output transient handling capability
- Selects one-of-eight data lines
- Performs parallel-to-serial conversion
- Permits multiplexing from N lines to one lines
- Also for use as Boolean function generator
