Description:

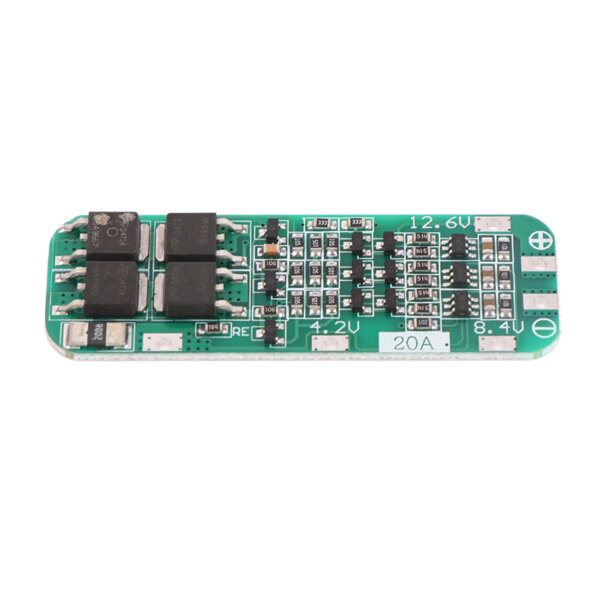

The 3S 20A BMS Circuit Li-ion Lithium Battery 18650 PCB Charger Protection Board is an essential component for ensuring the safety and longevity of your 3-cell Li-ion battery pack. This advanced BMS (Battery Management System) protects your battery from overcharging, over-discharging, and overcurrent conditions.
Key Features:
- Protects Against Overcharge and Over discharge: Safeguards your battery from damage caused by excessive charging or discharging.
- High Current Capacity: Handles up to 20A operating current and 75A peak current.
- Wide Operating Temperature Range: Functions reliably in temperatures from -40°C to +50°C.
- Compact Design: Integrates seamlessly into various applications with its small size.
- Easy Installation: Simple to connect to your battery pack with the provided wiring diagram.
Specifications:
- Model: HX-3S-01
- Voltage: 11.1V, 12V, 12.6V
- Current: 25A (operating), 75A (overcurrent peak)
- Working Temperature: -30°C to +80°C
- Size: 50mm x 16mm x 1.0mm
- Charging Voltage: 12.6V – 13V
Order Now and Protect Your Lithium-Ion Battery
Shop online for the 3S 20A BMS Circuit Li-ion Lithium Battery 18650 PCB Charger Protection Board at the best prices in Pakistan. Available in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad, and nationwide.
