Description

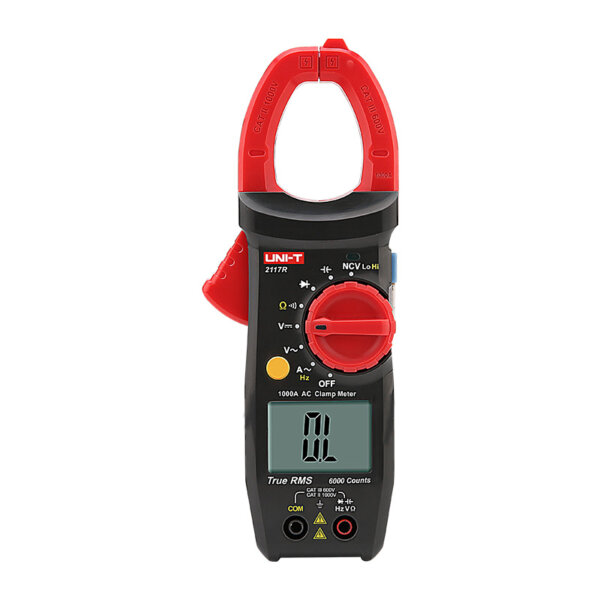

The 2117R True RMS 1000A AC Clamp Meter is an excellent choice for accurate AC current measurements. It offers versatile features, including 1000V AC/DC voltage measurement and 60MΩ resistance measurement. Additionally, the bright backlight ensures clear visibility, even in low-light conditions. Moreover, the dual-mode NCV function allows users to detect live voltages without direct contact with metallic surfaces, enhancing safety. The meter’s high-frequency response range further expands its applications, making it suitable for various tasks. Furthermore, the 2117R is CE/UKCA approved, ensuring compliance with safety standards. With a CAT II 1000V / CAT III 600V safety rating and 1000V overload protection, this meter provides reliability and security for all users.

Features of 2117R

1 True RMS

2 1000A AC current measurement

3 1000V AC/DC voltage measurement
4 Large LCD with backlight
5 ACA frequency measurement: 20H~10kHz
6 1000V overload protection
7 NCV (High/Low dual-mode)



Specifications of 2117R

Specifications Range 2117R
Certificates CE/UKCA
AC current (A) 1000A ±(1.5%+4)
AC frequency (Hz) 20Hz-10kHz ±(1.0%+5)
AC voltage (V) 1000V ±(1.0%+2)
DC voltage (V) 1000V ±(0.7%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 6mF ±(4%+5)
Features
Display count 6000
Jaw opening 33mm
True RMS
Auto range
Diode test
NCV
Data hold
LCD backlight
Auto power off Approximately 15 minutes
Continuity buzzer
Low battery indication ≤2.5V approximately
Input protection
Safety rating CATII 1000V/CATⅢ 600V

General Characteristics

Power AAA 1.5V x 2
Product net weight 210g
Product size 204x63x38 mm
Standard accessories English manual, test leads, batteries
Standard individual packing Gift box, carrying bag
Standard quantity per carton 40pcs
Standard carton measurement 485×295×385 mm

Package  included

2117R x 1
