Transistor
-

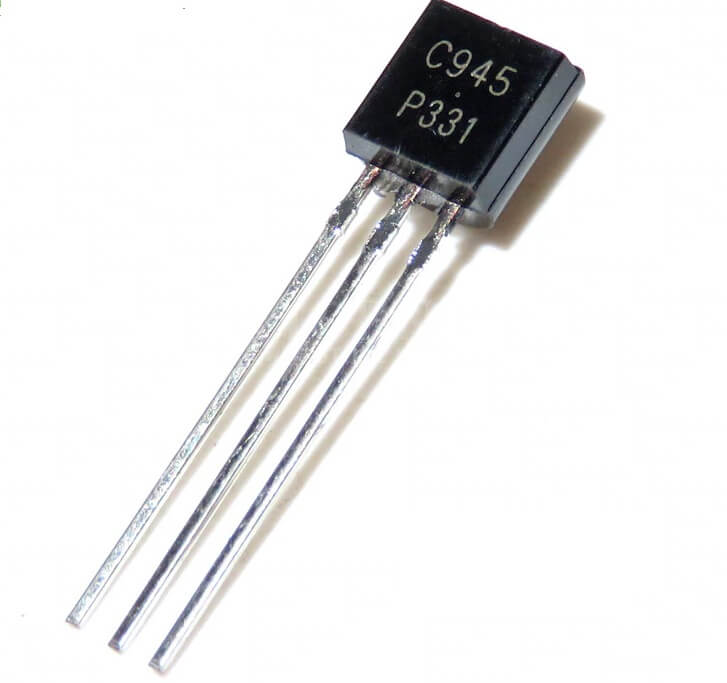

Description 2SC945 Bipolar NPN Transistor is an age-old Japanese Bipolar audio frequency NPN transistor. 2SC945 Bipolar NPN Transistor has a decent gain value (hfe) of maximum 700 and is highly linear. Hence it was widely used in amplifier applications for pre-amplifying purpose, in high-frequency circuits. It is...Regular price Rs.2.00 PKRRegular priceUnit price per
-

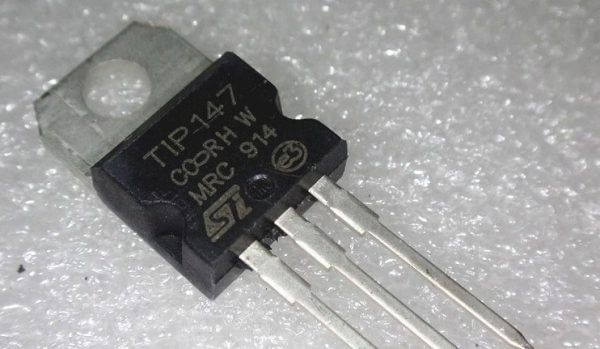

Description The TIP147 PNP DARLINGTON TRANSISTOR is designed for general purpose amplifier and low frequency switching applications. The TIP140, TIP141, TIP142, (NPN); TIP145, TIP146, TIP147, (PNP) are complementary devices. Features High DC Current Gain Min hFE = 1000 @ IC = 5 A, VCE = 4...Regular price Rs.55.00 PKRRegular priceUnit price per
-
Description The 2N3906 PNP TRANSISTOR is a commonly used PNP bipolar junction transistor intended for general purpose low-power amplifying or switching applications. It is designed for low electric current and power and medium voltage, and can operate at moderately high speeds. The 2N3906 is...Regular price Rs.5.00 PKRRegular priceUnit price per
-
About TIP122: The TIP122 NPN Darlington transistor is a Darlington pair NPN transistor. It functions like a normal NPN transistor, but since it has a Darlington pair inside it has a good collector current rating of about 5A and a gain of about 1000. It...Regular price Rs.25.00 PKRRegular priceUnit price per
-

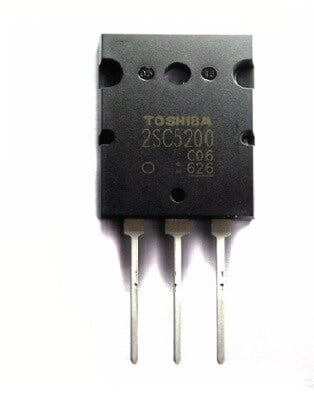

Description 2SC5200 NPN Power Transistor is Designed for general purpose power amplifier and switching applications. This is suitable transistor for high power audio amplifiers. Specifications High Fidelity Audio Frequency Amplifier Output Low Harmonic Distortion High Safe Operation Area − 1.0 A/100 V @ 1 Second...Regular price Rs.250.00 PKRRegular priceUnit price per
-
Brief Description of BC548 BC548 is a NPN transistor so the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. BC548 has a...Regular price Rs.5.00 PKRRegular priceUnit price per
-

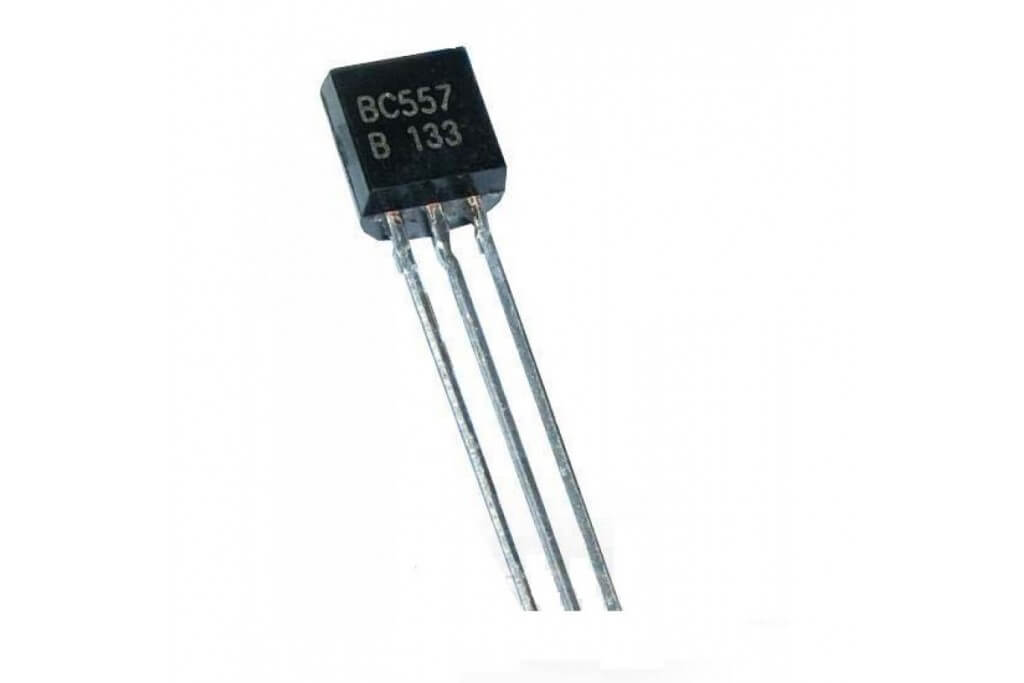

Brief Description on BC557 Transistor BC557 is a PNP transistor hence the collector and emitter will be close (Forward biase) when the base pin is hold at ground and will be open (Reverse biase) when a signal is provide to base pin. This...Regular price Rs.4.00 PKRRegular priceUnit price per
-
Description The type was registered by Motorola Semiconductor in the mid-sixties, together with the complementary PNP type 2N3906. It represents a significant performance/cost improvement, with the plastic TO-92 case replacing metal cans. It is designed for low current and power, medium voltage, and can...Regular price Rs.5.00 PKRRegular priceUnit price per
-
Description 2N2222A Bipolar Junction NPN Transistor is commonly used in general-purpose low-power amplifying/switching applications. Bipolar Junction NPN Transistor is designed for low to medium current, low power, medium voltage, and can operate at moderately high speeds. It was originally made in the TO-18 metal can as shown...Regular price Rs.5.00 PKRRegular priceUnit price per
-

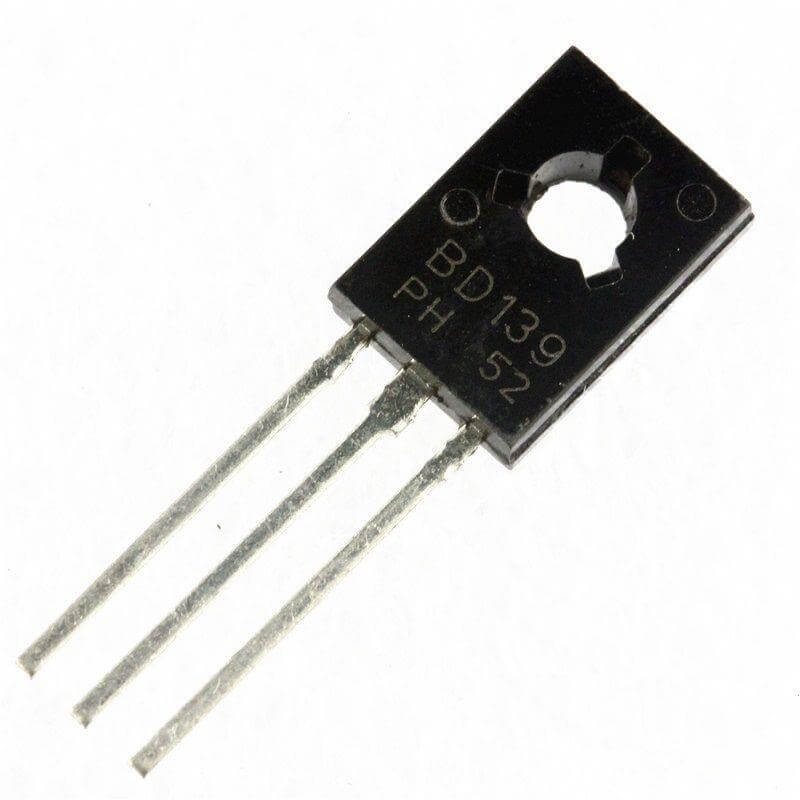

Description BD139 NPN Transistor is series of plastic, medium-power NPN transistors design for use as audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. These epitaxial planar transistors are mount in the SOT-32 plastic package. They are design for audio amplifiers and drivers utilizing...Regular price Rs.5.00 PKRRegular priceUnit price per
-
Description General purpose Silicon NPN transistor Used for switching and amplification purposes is available in Pakistan. The BC547 NPN Transistor is geared towards passing electrons from the emitter to the collector (so that conventional current flows from collector to emitter). The emitter "emits" electrons...Regular price Rs.5.00 PKRRegular priceUnit price per
