The 74HC595 8 Bit Serial To Parallel Shift Register IC is high speed shift register utilizes advanced silicon-gate CMOS technology. 74HC595 device possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15...

Description The 74HC74 7474 IC Dual D-type Flip-flop IC is a dual positive edge triggered D-type flip-flop. Having individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs. Data at the nD-input, that meets the set-up and...

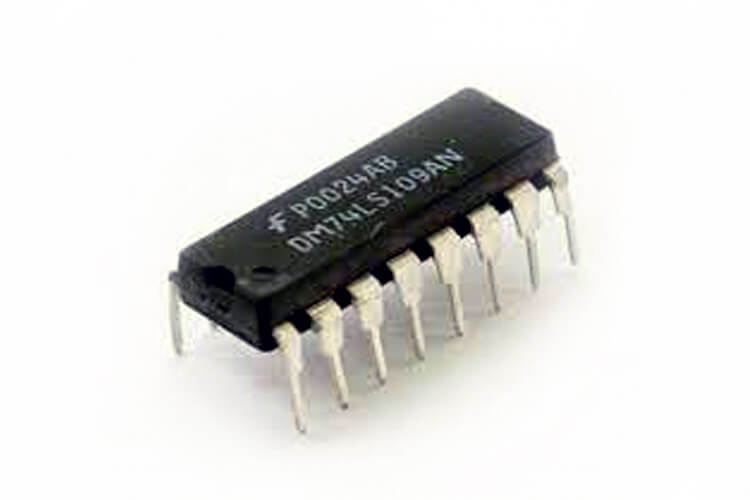

Features and Specifications Here are some important features and specifications of the 74LS109 IC. Positive Triggering edge Operating Voltage: 4.75V - 5.25V DC Frequency at normal voltage (Max): 35MHz Propagation delay (Max): 20ns High Output Current: 8 mA Low Output Current: 0.4 mA

Description: The 74LS139 works as a high-speed, dual 1-of-4 decoder/demultiplexer IC from the Low-Power Schottky (LS) family. Moreover, it includes two independent 2-line to 4-line decoders, and each one features an active-low enable input. Because of its flexibility, this IC serves as a versatile...

The 74LS158 is a TTL logic IC that features four independent 2-input multiplexers with inverted outputs, enabling efficient data selection and routing in digital systems.

Description: The 74LS189 is a high-speed 64-bit RAM organized as a 16- word by the 4-bit array. Address inputs are buffered to minimize loading and are fully decoded on-chip. The outputs are 3-state and are in the high impedance state whenever the Chip Select...

Description: This device contains four independent gates each of which performs the logic OR function. The 74LS32 is a 14 Pin Quad 2-Input OR Gate IC. The 74LS32 provides four independent 2-input OR gates with standard push-pull outputs. Featured by Sharvi Electronics The device...

Desciption: belonging to the 74LS (Low-power Schottky) series of TTL (Transistor-Transistor Logic) integrated circuits. Its primary function is to compare two 8-bit binary or Binary-Coded Decimal (BCD) words and determine if they are equal.  Key features: 8-bit comparison: The IC is specifically designed to...

This device 7476 contains two independent positive pulse triggered J-K flip-flops with complementary outputs. The J and K data is processed by the flip-flop after a complete clock pulse. While the clock is LOW the slave is isolated from the master. On the positive transition of...

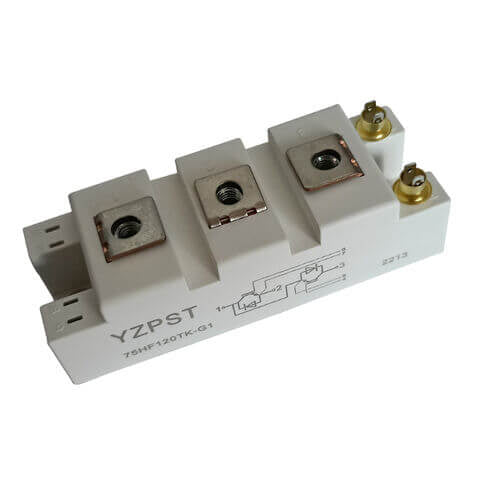

High-Power Switching Solution for Industrial Applications The 75A 1200V IGBT Module always delivers fast, efficient, and reliable power switching. First, it handles high-speed switching with ease. Then, it reduces conduction loss, making it perfect for inverters, motor drives, UPS systems, and industrial automation projects. Reliable, Efficient, and Built to Last Right away, this module gives you a 75 Amp current rating, so it...

75A 650V ON Semiconductor 75T65SQDT IGBT with Soft Fast Recovery Diode-digilog.pk 📄 Product Description: The 75T65SQDT is a 650V, 75A N-channel Field-Stop Trench IGBT from ON Semiconductor. It features an integrated soft, fast-recovery diode for efficient reverse current handling, making it ideal for hard-switching applications such as welding inverters, motor drives, UPS systems, and solar inverters. Designed...

HH75N120HA IGBT 75A 1200V for Solar Inverters 📄 Product Description: The HH75N120HA is a high-performance Insulated Gate Bipolar Transistor (IGBT) rated at 1200 volts and 75 amps, built with trench-gate or field-stop technology. This IGBT offers excellent switching performance, low conduction loss, and is housed in a TO-247 package suitable for heatsink mounting. Designed...

Description: 75T65 FGH75T65SQDT TO-247 IGBT combines cutting-edge technology with robust construction, ensuring optimal performance in critical applications. Here’s why it stands out: Field Stop Technology: Leveraging the latest field stop 4th generation design, this IGBT minimizes conduction and switching losses. Low Saturation Voltage: With a typical...

Description: The Kia 7808A is a three-terminal positive voltage regulator that delivers a steady 8V output. Moreover, it functions as a fixed linear regulator, making it reliable for consistent power supply. Manufactured by KEC (Korea Electronics Co.) under the part number KIA7808A, it ensures...

The 78L05 SMD Voltage Regulator SOT89 series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output...
