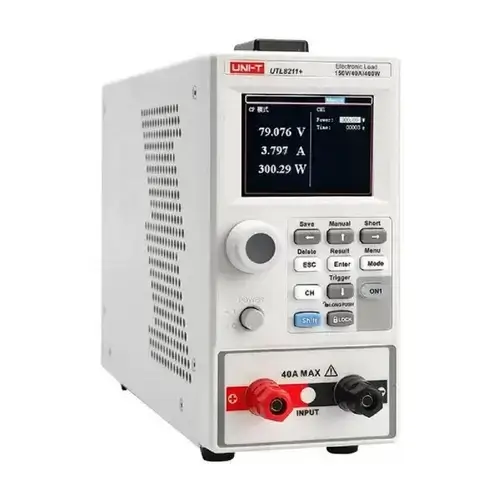

UNI-T UTL8211+ Programmable High-Precision Compact DC Electronic Load Tester

Features:

• UTL8200+series electronic load is equipped with a 2.8-inch LCD display, which is convenient and simple to operate, stylish and elegant in appearance, stable in operation

• Supports dual-channel completely independent testing, has a wide power measurement range, and has a test resolution as high as 1mV/1mA

Function:

• 2.8-inch 24-bit true color LCD display

• Maximum power 400W,maximum current 40A,maximum voltage 150V

• 4.8MHz Current-Voltage Synchronous ADC Sampling

• Single channel 400W or dual channel 200Wx2

• 1mV/1mA measurement resolution

• Four basic operation modes CC, CV, CR, and CP

• Up to 5kHz dynamic current test

• Programmable current rise and fall rate

• Support short circuit(short)simulation function

• Support multi-mode battery discharge mode

• List mode, support automatic test, support quick uninstall

• Over-voltage, low voltage, over current, over power, overheat protection

• Power polarity reverse alarm

• Infinite servo, intelligent fan system

• Power off memory function

• Standard RS232 interface

• Standard SCPI protocol

• Equipped with host computer software to realize remote operation and monitoring

Specification:

• Model: UTL8211+

• Display screen: LCD

• Input voltage: 0~150V

• Input Current: 0~40A; 0~20A(single channel)

• Input power: 400W; 200W×2

• Minimum operating voltage: 2.0V at 40A; 2.0V at 20A

Constent voltage mode:

• Range: 0~150V

• Resolution: 1mV

• Precision: ±(0.05%+0.1%FS)

Constant current: mode:

• Range: 0~4A/4~40A; 0~2A/2~20A

• Resolution (display): 1mA/10mA; 1mA/10mA

• Precision: ±(0.1%+0.1%FS)

Constant resistance mode:

• Range: 0.05Ω~7.5KΩ

• Resolution: 12bit

• Precision:+(0.3%Vin/Rset+0.2%IF.S)

Canstant power mode:

• Range: 400W

• Resolution: 10mW

• Precision: ±(0.1%+0.5%FS)

Dynamic mode:

• T1&T2: 100 uS 50S/Res:100 uS

• Rising/falling slope: 0.08A/mS 0.4A/uS; 0.04A/mS 0.2A/uS

• Minimum rise time: 100us

Voltage readback value:

• Range: 0~15V/0~150V; 0~15V/0~150V

• Resolution (display): 1mV/10mV; 1mV/10mV

• Precision: ±(0.1%+0.1%FS)

Current readback value:

• Range: 0~4A/4~40A; 0~2A/2~20A

• Resolution (display): 1mA/10mA; 1mA/10mA

• Precision: ±(0.1%+0.1%FS)

Power readback value:

• Range: 400W; 200W

• Resolution: 10mW

• Precision: ±(0.1%+0.5%FS)

• Overpower protection: Delayed Protection, Immediate Protection

• Overcurrent protection: Delayed Protection, Immediate Protection

• Overvoltage protection: Delayed Protection, Immediate Protection

• Over temperature protection: ≥85°C

• Short circuit: Yes

• Ripple display: Yes

• Input terminal impedance: 300K

• Fuse Specifications: 0.5A(110)/0.25A(220V)

• Communication Interface: RS232

• Protocol: SCPI

• Data acquisition software: Yes

• Random standard accessories: Power cable

• Power requirements: 110V/220V Frequency 50/60Hz

• Volume: 88*174.6*230mm

Package includes:

• 1 x DC Electronic Load Tester

• 1 x Power Cable
