ZC25H 1000V Insulation Tester In Pakistan

Description:

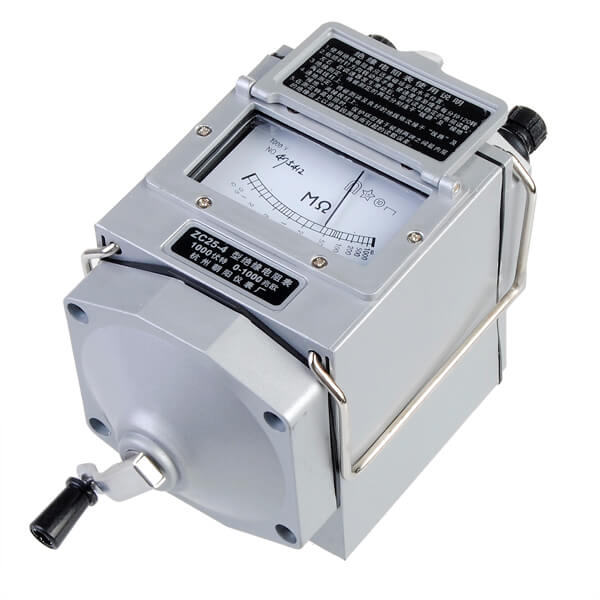

The INSULATION TESTER ZC25H 1000V is a hand-cranked analog megohmmeter used to measure the insulation resistance of electrical equipment. The ZC25 series is a Chinese-made tester, and the "H" designation indicates a durable alloy housing.

• Test voltage: 1000V DC.
• Measuring range: 0 to 1000 MΩ.
• Accuracy: Grade 10, with a tolerance of ±10%.
• Rated cranking speed: 120 rotations per minute (r/min).

• Operating conditions: Use the tester in temperatures from -25°C to 40°C with relative humidity below 80%.

  Housing: The alloy shell (indicated by "H" in the model name) combines aluminum and plastic to provide durability.Other casing options in the ZC25 series include plastic, plastic spray-painted, and all-aluminum.

• Portability: Features a portable, lightweight design with a handle for easy carrying.

• Motors
• Cables
• Transformers
• Telecommunication components
• Household appliances
