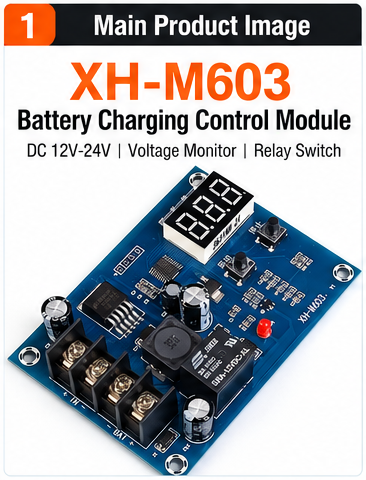

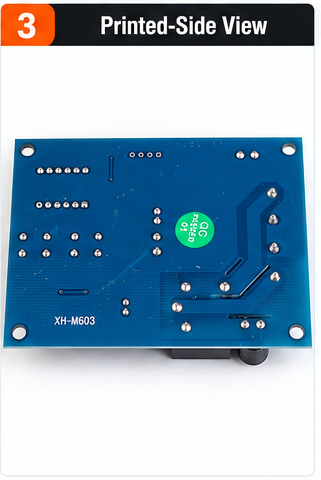

XH-M603 M632 12V 24V Battery Charging Control Module with Digital Voltage Display

XH-M603 / M632 Battery Charging Control Module – DC 10–30V

Control your battery charging cycle with the XH-M603/M632 battery charging control module. Designed for compatible 12V and 24V battery systems, this compact board monitors voltage and switches the connected charging circuit according to user-set start and stop voltage thresholds.

The onboard digital LED display makes voltage monitoring convenient, while the buttons allow the charging thresholds to be adjusted for a suitable battery setup.

Key Features

• Adjustable charging thresholds: Configure the voltage at which charging starts and stops.

• Digital voltage display: View the monitored voltage on the onboard LED display.

• Automatic relay switching: Connects or disconnects the controlled circuit when the configured voltage threshold is reached.

• Wide module input range: DC 10–30V, according to the published specifications.

• Designed for 12V/24V battery systems: Use only with a compatible battery, charging source, and configuration.

• Compact circuit board: Approximate dimensions of 82 × 58 × 18mm, as reported by matching listings.

• Simple button operation: Set charging thresholds using the onboard controls.

Technical Specifications

• Model: XH-M603 / M632 (also listed as HW-632)

• Module input voltage: DC 10–30V

• Intended battery systems: 12V and 24V

• Display precision: 0.1V

• Control precision: 0.1V

• Reported voltage tolerance: ±0.1V

• Output type: Direct relay-switched output

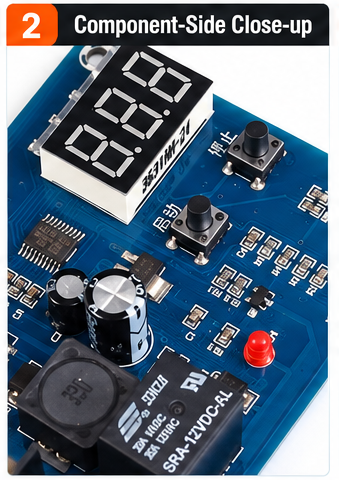

• Display: Digital LED

• Controls: Start/stop buttons

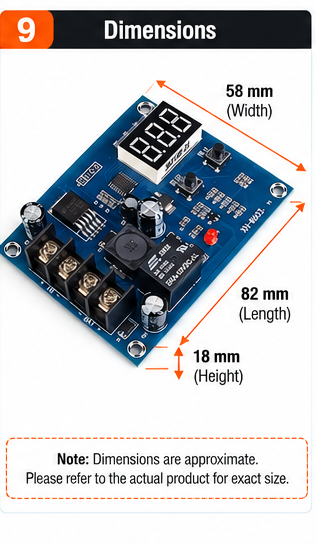

• Dimensions: Approximately 82 × 58 × 18mm

• Maximum relay current: Confirm with the supplier before use

How It Works

1. Connect the module's input and controlled output according to the terminal markings and the supplied wiring instructions.

2. Power the module from a compatible DC source.

3. Use the onboard controls to set the voltage threshold at which charging should start.

4. Set the voltage threshold at which charging should stop.

5. Confirm the displayed voltage and switching operation before leaving the system unattended.

The exact button sequence and terminal connections may vary by board revision. Follow the instructions for the supplied module.

Suitable Applications

• Compatible 12V/24V battery charging projects

• Battery voltage monitoring and relay-control projects

• Suitable solar-assisted battery charging setups

• DIY power-management systems

• Battery charging automation for compatible lead-acid or other supported battery systems

Important Compatibility and Safety Notes

This module is a charging control switch, not a complete regulated battery charger. It does not replace the correct charger, charge-current limiting, cell balancing, or a chemistry-specific battery management system.

Before use, confirm the battery chemistry, charging voltage, relay contact rating, current requirements, and terminal wiring. Do not connect a battery or power source solely on the basis of the nominal 12V/24V description.

Package contents: 1 × XH-M603/M632 battery charging control module, unless the supplied product configuration states otherwise.
