Waterproof DS18B20 Temperature Sensor In Pakistan

Waterproof DS18B20 Temperature Sensor

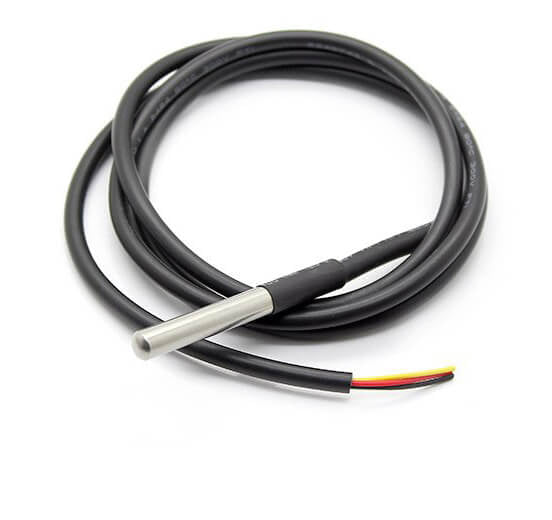

Waterproof DS18B20 Temperature Sensor is a 1 meter long, sealed, and pre-wired Waterproof DS18B20 temperature sensor probe based on the DS18B20 sensor. It is suitable for when you need to measure something, in wet conditions.  It is digital, you don’t get any signal poverty even over a long distance.

This 1-wire of the sensor is fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin. You can even connect multiple ones to the same pin, each one having a unique 64-bit ID burn-in at the factory to differentiate them. Usable with 3.0-5.0V systems.

The only downside is they use the Dallas 1-Wire protocol, which somewhat difficult and requires a bunch of code to parse out the communication. When it is used with a microcontroller, put a 4.7k resistor to the sensing pin. It requires to criticize from DATA to the VCC line.

Wired connection: Red: VCC/VDD, Yellow/White: DATA, Black: GND

Features:

1. A probe by new original installation import the DS18B20 temperature sensor chip.
2. Chip each pin use a heat-shrinkable tube to prevent short circuit, internal sealing glue, waterproof, moisture-proof.
3. Stainless steel tube encapsulation waterproof moistureproof prevents rust.
4. Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use stability;
5. 3.0 V-5.5 V power supply;
6. Temperature range wide:-55 ℃ ~ + 125 ℃;
7. Without the external components, the unique single bus;
8. Cable specifications:
9. Stainless steel tube 6mm diameter by 30mm long
10. Cable is 36″ long / 91cm, 4mm diameter (1 Meter Long)
11. Contains DS18B20 temperature sensor
12. Three wires – Red connects to 3-5V, Black connects to the ground, and White is data.
13. DS18B20 Sensor

Specifications:

1. Usable temperature range: -55 to 125°C (-67°F to +257°F)
2. 9 to 12-bit selectable resolution
3. Uses 1-Wire interface- requires only one digital pin for communication
4. Unique 64 bit ID burned into the chip
5. Multiple sensors can share one pin
6. ±0.5°C Accuracy from -10°C to +85°C
7. Temperature-limit alarm system
8. Usable with 3.0V to 5.5V power/data

Package Includes :

1 x Waterproof DS18B20 Temperature Sensor
