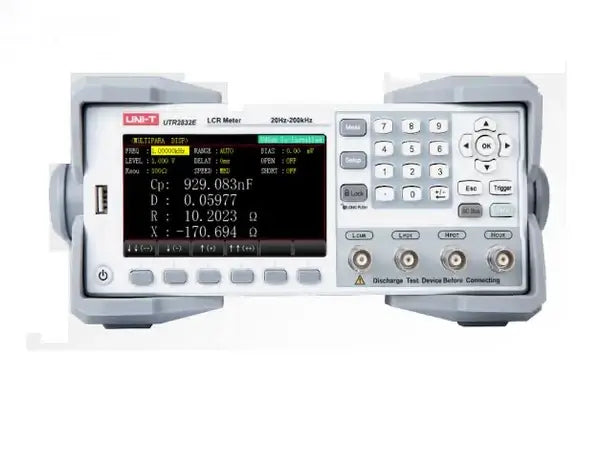

UTR2832E Desktop High Precision Digital LCR Bridge

Features:

• Display: 4.3''(480x272) TFT LCD
• Frequency

+ Range: 20Hz~200kHz(Continually adjustable)

+ Accuracy: ±0.02%

• AC level

+ Range: 10mVrms~2Vrms

+ Accuracy: 10% set value +2mV

• DC level: Range: 50mV~2V
• AC source internal resistance:

+ ISO ON: 100Ω

+ ISO OFF: 30Ω / 50Ω / 100Ω

• DC bias voltage: Range: 0V~±5V
• DCR internal resistance: 100Ω
• Test parameters: L, C, R, |Z|, D, Q, |Y|, G, X, θd, θr, RDC, Vm, Im, △%
• Accuracy: LCRZ 0.05%, DCR 0.1%
• Test speed: Fast: 12.5ms; Medium: 83ms; Slow: 167ms
• V/I monitor: yes
• Calibration: Open, Short, Load
• List: 201 Dots
• Trigger: Internal, manual, external, bus
• Average: 1~255
• Comparator: 10 bins, BIN1–BIN9, NG, AUX; Bin count function
• Storage: Internal: 100 sets of setting files, 201 test results
• USB: Setting files, BMP images, CSV data files
• Interface: RS232, HANDLER, USB HOST, USB DEVICE, LAN
• Weight: 4.65kg
• Size: 88mm×215mm×350mm
