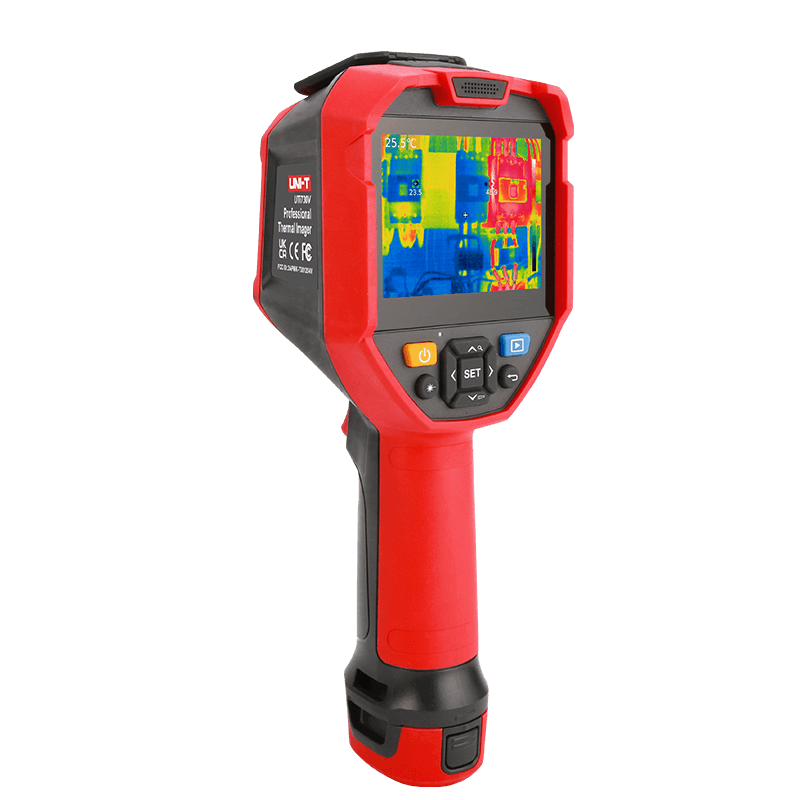

UTi730V Professional Enhanced Thermal Camera

Description:

V series features a 5MP digital camera and 3.5′ touch display screen to improve the working efficiency and imaging quality. Build-in laser ranging function meets the need of measuring targets in a safety distance. In functions, video & voice recording and Wi-Fi live streaming are added to make the device more playable. It is a reliable measurement tools widely used in industrial field.

It can be equipped with macro lens UT-Z003 (Optional), the recommended distance is 4 cm.

Features:

• 3.5″ IPS touch display screen (640×480 Pixels)
• IR resolution: 320×240
• Temperature measurement range: -40℃ to 400℃ / -40℉ to 752 ℉
• Auto alarm for HI/LO temperature
• Auto tracking for HI/LO spot
• On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
• Isotherm
• With 5MP digital camera
• 2x, 4x magnification
• 4 image modes (Thermal, Visual image, Fusion (T-Mix), PIP)
• QR Code – photo management
• Video & voice recording
• Laser pointer & laser ranging
• LED flashlight
• Wi-Fi connection through Mobile App – Wi-Fi live streaming is supported
• PC software: analysis and real-time image projection
• 5200mAh detachable battery pack (UT-M17)
• IP54
• 2m drop proof

  Specifications:

  Technical Data
  Display	3.5″ IPS Touch (640×480)
  IR resolution(Pixels)	320×240
  Spectral range	8~14µm
  Pixel size	12µm
  Frame rate	≤9Hz
  Thermal sensitivity(NETD)	≤65mK
  Focus	Focus Free
  Field of view(FOV)	56°(H) × 42°(V)
  Temperature measurement range	-40℃~400℃
  Accuracy	±2℃ or ±2% whichever is greater
  Functions
  Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
  Image modes	Thermal, Visual image, Fusion (T-Mix), PIP
  On screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
  Isotherm	Auto/Manual
  Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
  Hi/Lo temperature tracking	√
  Digital camera resolution	5MP
  Digital zoom	2x, 4x
  Video recording	√
  Voice recording	√
  Wi-Fi	√
  Wi-Fi live streaming	√
  LED lighting	√
  Laser pointer	√
  Laser distance measurement	√
  Analysis software	PC+APP
  General Characteristics
  Battery	5200mAh detachable Li-ion battery pack (UT-M17)
  Operating time	≥4 hours (with Wi-Fi off)
  USB	Type-C
  Storage	32GB Micro SD card
  Image storage format	JPG
  Video storage format	AVI
  Protection	IP54 & 2m drop proof
  Certificates	CE, UKCA, FCC, RoHS
  Languages	EN, FR, DE, IT, ES, SV, PL, CZ
  Weight	654g
  Dimension	260mm×97mm×99mm
  Packing Details
  Standard accessories	Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
  Standard individual packing	Toolbox & Gift box
  Standard Qty per carton	1pcs
  Standard carton size	400mm×185mm×345mm
  Standard carton G.W.	4kg
