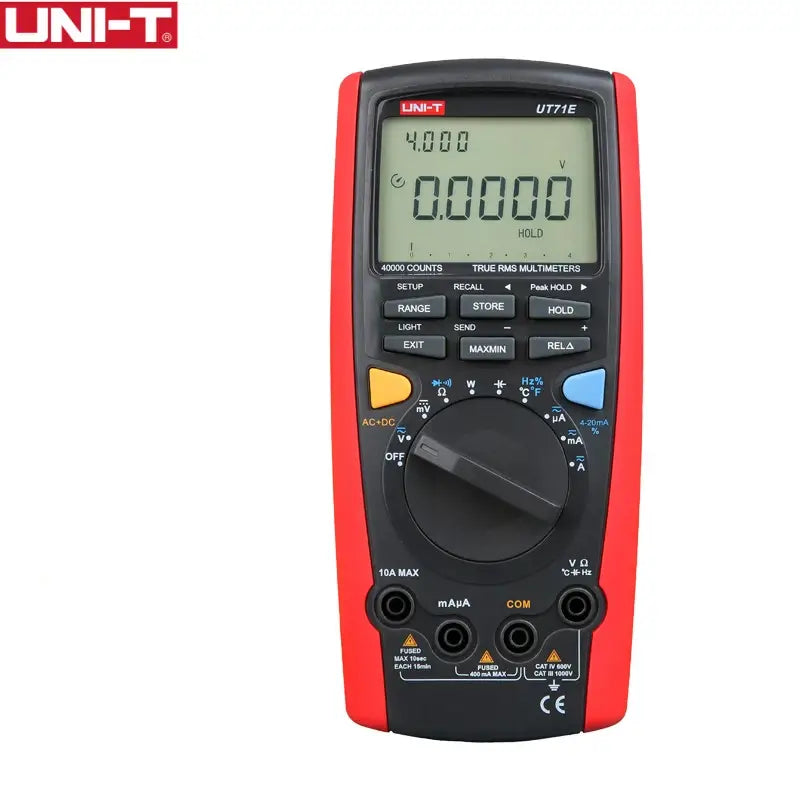

UT71E Intelligent Digital Multimeter in Pakistan
SKU:
product-9511
Availability:
Many in stock
Product type:
Multimeters
Rs.63,000.00
UT71E Intelligent Digital Multimeter can quickly solve complex problems on electronics, factory automation, distribution and electronic engineering equipment. UT71 series can set upper and lower limits, a very useful feature for improving electronics mass production inspection and screening efficiency.
Features of UT71E:
- True RMS, duty cycle, continuity buzzer
- Adjustable data recording interval
- MAX/MIN/REL modes; peak/data hold; analog bar graph
- 4-20mA loop test
- 45Hz~100kHz frequency response
- LCD backlight; misplug alarm
- Auto power off, low battery indication
- Data logging
- Auto and manual ranges selectable
- USB interface, Bluetooth
- 2500W power measurement
- Temperature measurement, k-type
- Smartphone APP： iDMM
- Works with UT-D07A Bluetooth adaptor
- 15 Download from Apple Store or Google Play Stor
Specifications |
Range |
UT71E |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage (V) | 1000V | ±(0.4%+30) |
| DC current (A) | 10A | ±(0.1%+15) |
| AC current (A) | 10A | ±(0.7%+15) |
| Resistance (Ω) | 40MΩ | ±(0.3%+8) |
| Capacitance (F) | 40mF | ±(1%+20) |
| Frequency (Hz) | 40Hz~400MHz | ±(0.01%+8) |
| Temperature | -40°C~1000°C | ±(1%+30) |
| -40°F~1832°F | ±(1.5%+50) | |
| Display count | 40000 | |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 73mm x 50mm | |
| Product color | Red and grey | |
| Product net weight | 384g | |
| Product size | 200mm x 93mm x 40mm | |
| Standard accessories | Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe, power adaptor | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 10pcs | |
| Standard carton measurement | 540mm x 360mm x 275mm | |
| Standard carton gross weight | 12.5kg | |
Package Includes:
- 1 x UT71E Intelligent Digital Multimeter
