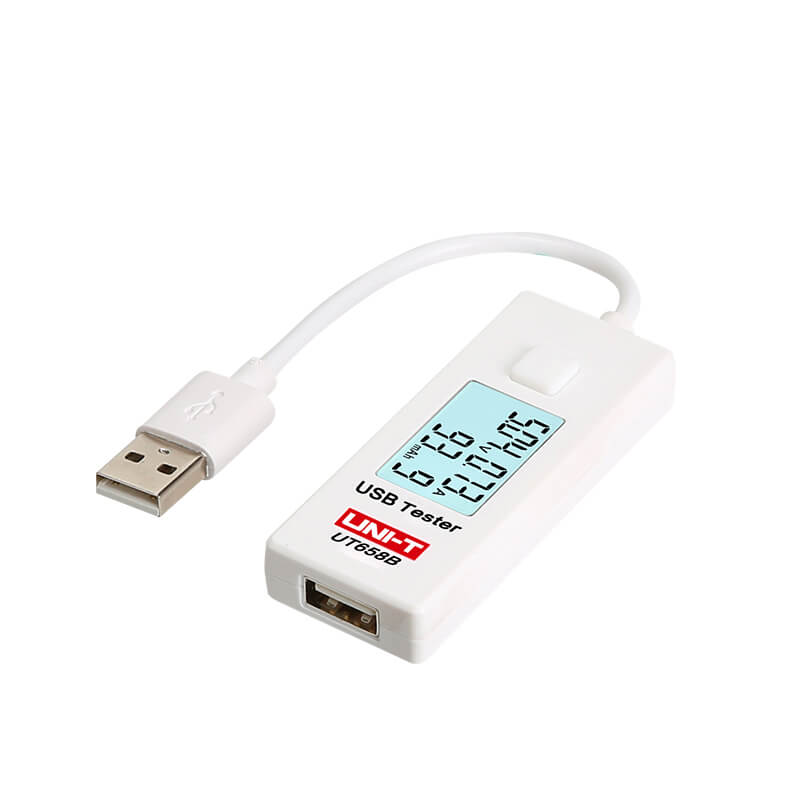

UT658 USB tester is used to inspect USB chargers and portable power source of electronics products. UT658 series can output voltage, current, and power. Users can use these devices to monitor charging status of any USB powered device.
UT658
1.10 sets of data storage
2.High/Low output voltage warning
3.LCD backlight
4.Lightweight, portable
UT658B
1.Charging voltage, current and battery capacity co-display
2.Charger capacity test (continuous memory)
3.CE/RoHS/FCC certification
Specifications |
UT658B USB Tester |
| Input voltage range (V) | 3V~9V |
| Voltage resolution | 0.01V |
| Voltage monitoring accuracy | ±(1%+5) |
| Current monitoring range (A) | 0A~3.5A |
| Current monitoring accuracy | ±(1%±5) |
| Current resolution | 0.01A |
| Capacity | 0~39999mAH |
| Capacity data storage | 10 sets |
| Display | LCD |
| Warning | √ |
| Button | √ |
| Cable length | 10cm |
| Pollution level | 2 |
| Working temperature | -10℃~40℃ |
| Storage temperature | -10℃~50℃ |
| Relative humidity | <75% |
| General Characterisitics | |
| Product color | White |
| Product net weight | 30g |
| Product size | 72mm x 29mm x 12mm |
| Standard individual packing | Gift box |
| Standard quantity per carton | 60pcs |
| Standard carton measurement | 205mm x 170mm x 170mm |
| Standard carton gross weight | 2.3kg |
