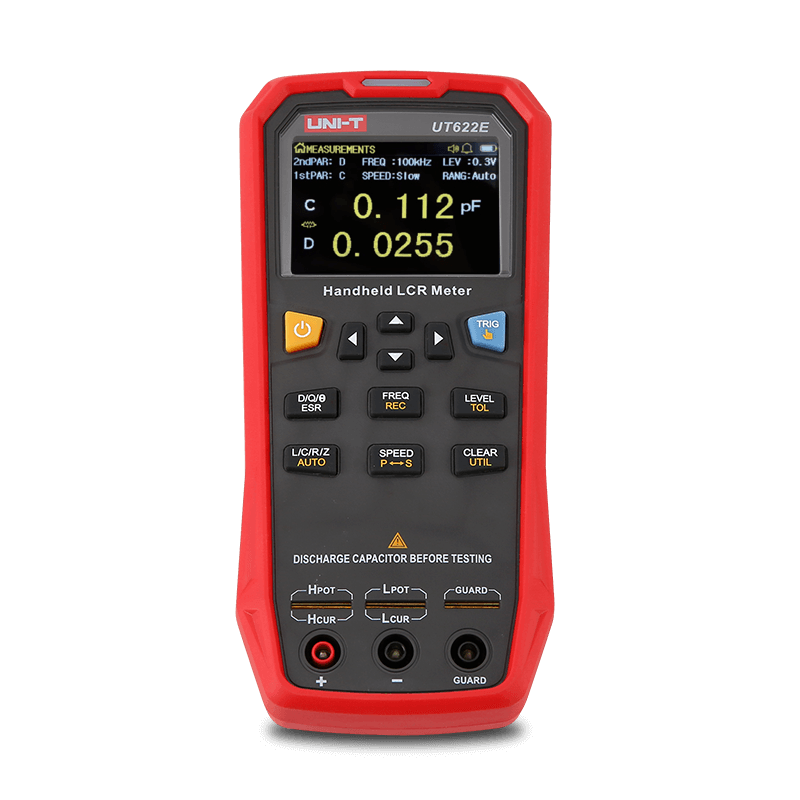

UT622E Handheld LCR Meter
SKU:
product-15970
Availability:
Many in stock
Product type:
Uncategorized
Rs.0.00
Features
-
Auto Power Off – Saves battery with automatic shutdown after inactivity.
-
USB Interface – Supports PC connectivity for data transfer and analysis.
-
Portable Design – Lightweight handheld structure with a strong, durable casing for field and lab use.
-
Built-in Comparator – Pass/Fail judgment for production line testing.
-
Backlit LCD – Clear visibility in both bright and low-light conditions.
Specifications
| Testfrequencies | 100/120/1k/10k/100k Hz |
| Resistance range | 0.0000 Ω - 9.9999 MΩ |
| Capacitance range | 0.00 pF - 99.999 mF |
| Induction range | 0.00 uH - 99.999 H |
| Measurement parameters | Primary: L/C/R/Z/DCR Secondary: D/Q/Θ/ESR |
| Tolerance range | 1% - 20% |
| DCR test speed | Fast (20 times/sec), medium (5 times/sec), or slow (2 times/sec) |
| Display | 2.8' TFT LCD (99999 counts) |
| Power supply | 3.7 V lithium polymer battery |
| Max. measurement speed | 20 measurements/sec |
| Dimensions | 93 x 192 x 44 mm |
| Weight | 420g |
