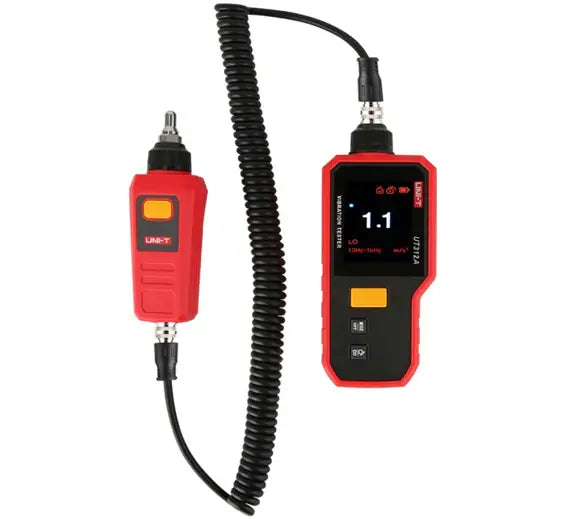

UT312A Handheld Vibration Tester

Features of  UT312A vibration tester

• Acceleration/velocity/displacement measurement
• High/low frequency acceleration modes
• Multiple probes
• High sensitivity sensor
• Come with flashlight
• LCD TFT and automatically rotatable screen
• Rechargeable lithium battery
• Simple design and compact structure
• Certificates: CE, UKCA
• Languages: EN, FR, DE, IT, ES, SV, PL, CZ

  Specification of UT312A vibration tester

  Sepecification			UT312A
  Parameter			Resolution	Accuracy
  Acceleration(PEAK)			0.1m/s²	±(5%+2dgts)
  Velocity(RMS)			0.1mm/s
  Displacement(P-P)			0.001mm	±(10%+2dgts)
  Automatically rotatable screen	√
  High/Low frequency acceleration	√
  Datahold	√
  Flashlight	√
  LCD type	2.4″ TFT color screen, full view
  LCD backlight	√
  Auto power off	5 minutes without operation
  Probes	Long and short probes (optional), magnetic sucker (UT312A only)
  Battery indication	√
  Battery type	1350mAh/3.7V lithium battery
  Charging interface	Type-C
  Charging voltage	DC 5V
  Charging time	About 3h
  Battery duration	About 12h
  Operating temperature and humidity	0℃~40℃; ≤80%RH, non-condensing
  Storage temperature	-20℃~60℃
  General Characteristics
  Standard accessories	Long and short probe, U-type magnetic sucker (UT312A only), USB-C charging cable, User manual, Safety instructions
  Productsize	UT312A: 168×28×64mm
  Product weight	UT312A: About 364g (including the short probe)
