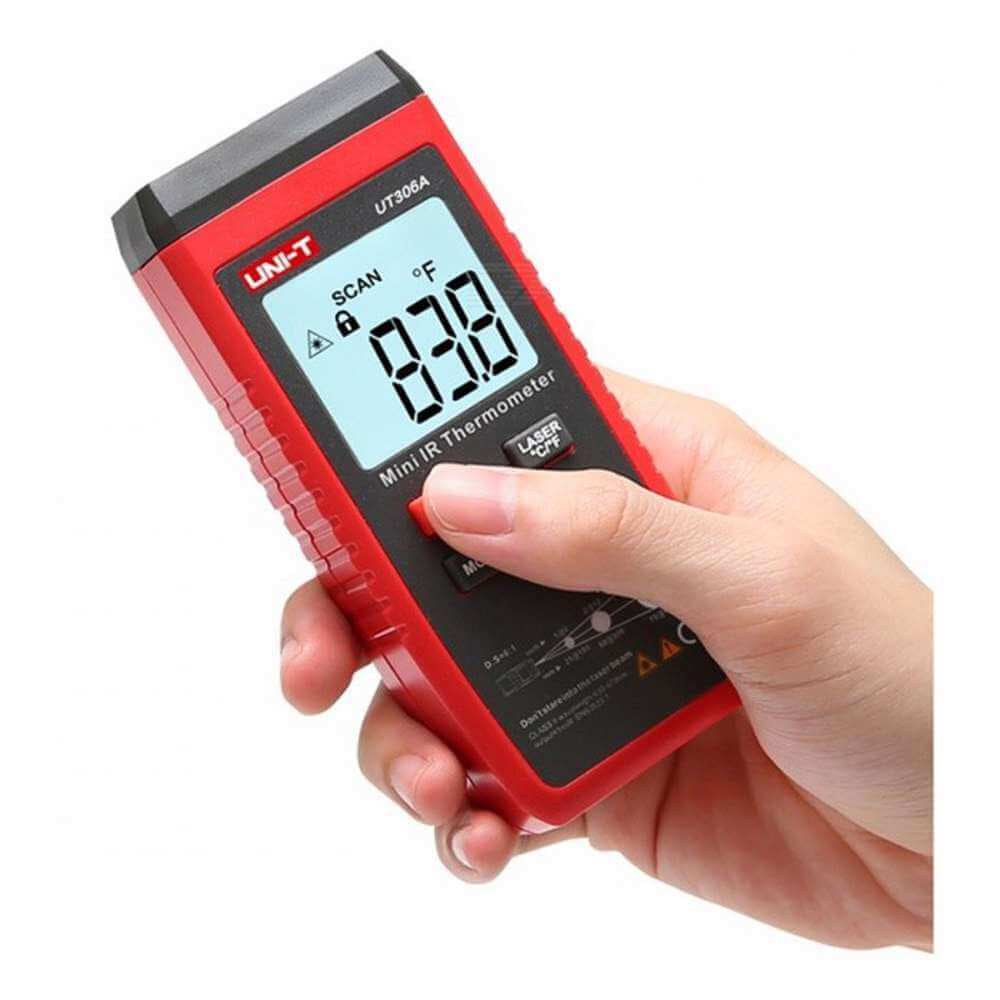

UT306A Mini IR Thermometer is a portable non-contact thermometer. This device’s miniature design is convenient to carry and suitable
1. Single-laser targeting
Specifications |
UT306A |
| Temperature range | -35℃~300℃ |
| -31℉~572℉ | |
| Accuracy | ≥0℃: ±2.0℃ or ±2%; <0℃: ±(2.0℃+0.1℃/℃) |
| ≥32℉: ±4.0℉ or ±2%; <32℉: ±(4.0℉+0.1℉/℉) | |
| D:S ratio | 6:01 |
| Response time | <250ms |
| Emissivity | 0.95 |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
Secondary Features |
|
| Auto power off | √ |
| Low battery indication | √ |
| Data hold | √ |
| ℃/℉ selection | √ |
| MAX/MIN/AVG mode | √ |
| Lock measurement | √ |
| Backlight | √ |
| Laser | √ |
| Operating temperature | 0℃~50℃ (32℉~104℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 1m |
General Characteristics |
|
| Power | 1.5V battery (R03) x 3 |
| Display | 37.4mm x 36.4mm |
| Product color | Red and grey |
| Product net weight | 120g |
| Product size | 120mm x 53mm x 28mm |
| Standard accessories | Batteries |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 272mm x 225mm x 200mm |
| Standard carton gross weight | 2.8kg |
