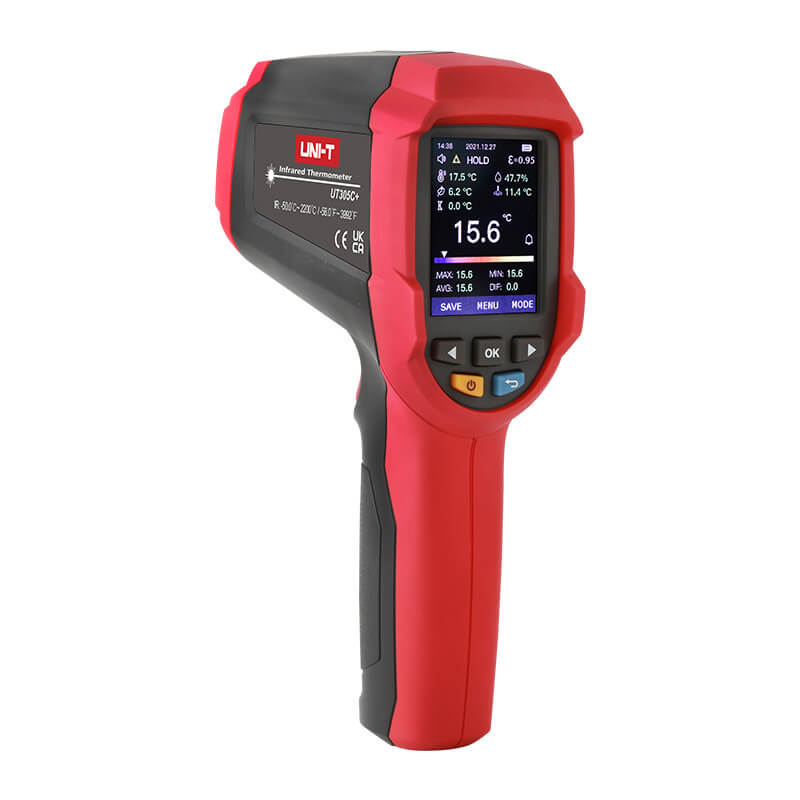

UT305C+ Series Infrared Thermometer

 UT305C+ Infrared Thermometer – Specification

Measurement Ranges

• Infrared Temperature: -50°C ~ 2200°C (-58°F ~ 3992°F)

• Environmental Temperature: -10°C ~ 50°C (14°F ~ 122°F)

• Relative Humidity: 10%RH ~ 90%RH

• Type K Thermocouple: -50°C ~ 1370°C (-58°F ~ 2498°F)

Accuracy

• Infrared Temperature:

  • -50°C ~ 0°C: ±(1.0°C + 0.1°C/°C)

  • -58°F ~ 32°F: ±(2.0°F + 0.1°F/°F)

  • 0°C ~ 2200°C: ±1.0°C or ±0.01×t°C (whichever is greater)

  • 32°F ~ 3992°F: ±2.0°F or ±0.01×t°F (whichever is greater)

• Environmental Temperature:

  • -10°C ~ 0°C (14°F ~ 32°F): ±1.0°C (±2.0°F)

  • 0°C ~ 40°C (32°F ~ 104°F): ±0.5°C (±1.0°F)

  • 40°C ~ 50°C (104°F ~ 122°F): ±1.0°C (±2.0°F)

• Relative Humidity: ±5%RH

• Type K Thermocouple: ±(0.005×t + 1.5)°C, ±(0.005×t + 3.0)°F

Performance

• Distance-to-Spot Ratio: 55:1

• Emissivity: Adjustable 0.1 ~ 1.0

• Spectral Response: 8 μm ~ 14 μm

• Repeatability: ±0.005×t°C (or 1°C) / ±0.005×t°F (or 2°F), whichever is greater

• Display Resolution: 0.1°C / 0.1°F

• Temperature Coefficient: ±0.1°C/°C or ±0.1%°C/°C; ±0.1°F/°F or ±0.1%°F/°F

Features

• Unit Conversion (°C / °F)

• Single Laser Pointer (< 1 mW, Class II)

• Data Storage (999 groups)

• Data Output Formats: PDF, CSV

• Type-C USB Communication & Charging

• Buzzer Alarm for High/Low Temperature

• Trigger Lock Function & Scheduled Measurement

• Real-Time Clock & Date Display

• 2.4-inch TFT LCD (320 × 240 pixels)

• Drop Tested: 1 m

• Operating Altitude: ≤ 2000 m

Battery & Power

• Battery Type: 3.7V 2600mAh 18650 Li-ion (Rechargeable)

• Charging Time: ≤ 3 hours

• Continuous Operation: ≥ 20 hours on full charge

K-Type Thermocouple Probe (Included)

• Range: -40°C ~ 260°C (-40°F ~ 500°F)

• Accuracy: ±0.075×T (T = measured temperature)

• Cable Length: 1 m (40 in)

• Connector: Standard micro thermocouple connector with bead probe

General Characteristics

• Color: Red & Grey

• Net Weight: 375 g

• Dimensions: 205 × 65 × 124 mm

• LCD Size: 37 × 49 mm

• Standard Accessories: Type-C Cable, Type K Thermocouple Probe (Bead Type)

• Packing: Gift Box, Tool Box, Instruction Manual, Warranty Card

• Carton Size: 365 × 160 × 300 mm
