UT258A AC/DC Leakage Clamp Meter in Pakistan
SKU:
product-9391
Availability:
Many in stock
Product type:
Clamp Meters
Rs.27,500.00

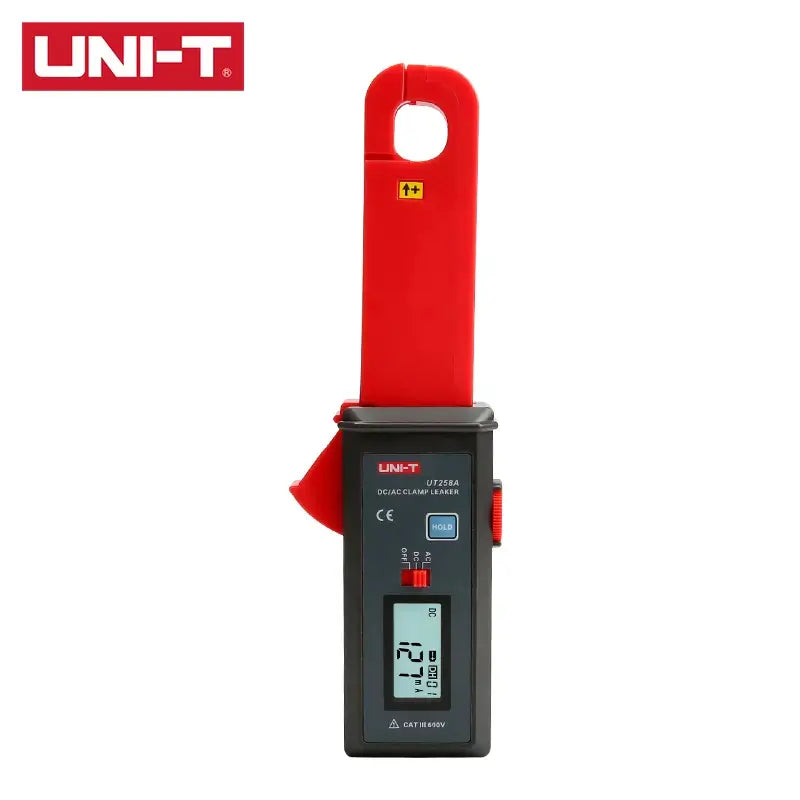

UT258A AC/DC Leakage Clamp Meter is well designed for on-line measurement of DC/AC leakage current and current below 600V, which adopts the latest CT and digital integration technology. The slender clamp is very suitable for places full of concentrated cables (such as electric power metering system, high-speed rail system, automobile circuit maintenance, and so on). Non-contact measurement ensures operation safety. The meter has a mini shape with high accuracy, stable performance, and perfect functions.UT258A AC/DC Leakage Clamp Meter is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero modes, φ7mm jaw, and RS-232 interface.
Applications of UT258A:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.
General Functions |
Range |
Accuracy |
| Type | UT258A | |
| Current (A) | 0mA～60.0A AC/DC | ±(2%+5) |
| Resolution | 1mA AC/DC | |
| Frequency Response | AC: 45HZ～200HZ | |
Special Functions |
||
| Display Mode | 4-bit LCD display | √ |
| Jaw Size | φ7mm (max wires O.D.) | √ |
| Auto Range | √ | |
| RS-232 Data Transmission | √ | |
| Data Storage | 99 groups | |
| Zero Adjustment | Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested. | √ |
| Data Hold | √ | |
| Line Voltage | not beyond 600V | √ |
| Auto Power Off | 5 min | √ |
| Low Battery Indication | Indicates low battery when the voltage is 7.2 | √ |
| Sampling Rate | About 2 sec per time | √ |
| Working Current | 10mA | √ |
General Characteristics |
||
| Power Supply | Zinc-manganese battery 6F22 9V | |
| Product Color | Red and grey | |
| Product Weight | 180g (with batteries) | |
| Product Size | 168mm×65mm×34mm | |
| Standard Accessories | Batteries, monitoring software, RS232 cable | |
| Standard Package | Gift box, user manual, toolbox | |
| Standard Package Quantity | 40pcs | |
| Standard Package Size | 540X365X290mm | |
| Standard Package Gross Weight | 20kg | |
Package Includes:
- 1 x UT258A AC/DC Leakage Clamp Meter
