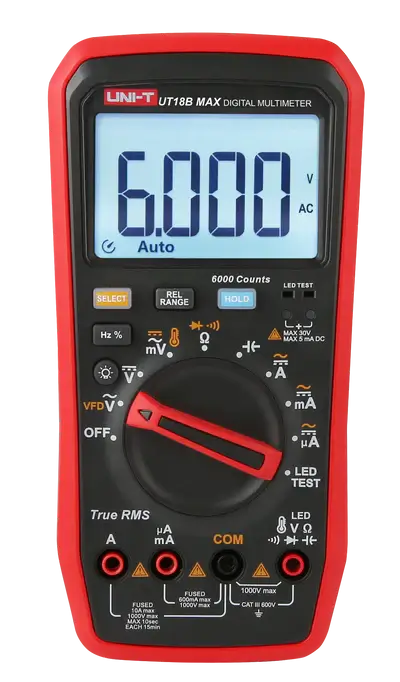

UT18B Max True RMS Digital Multimeter
SKU:
product-15821
Availability:
Many in stock
Product type:
Uncategorized
Rs.0.00
Features of UT18B Max True RMS Digital Multimeter
Certificates: CE, UKCA, cETLus, REACH, RoHS
● True RMS measurement
● Compact design
● V.F.D function
● Fast measurement of Continuity
● Fast measurement of Capacitance
● Two test probes (standard & fine-tipped)
● Strong EMC anti-interference
● Full-range input protection
Specifications of UT18B MAX True RMS Digital Multimeter
Technical Specifications
| Parameter | UT18B MAX |
|---|---|
| Certificates | CE, UKCA, cETLus, REACH, RoHS |
| Voltage (DC) | 600.0mV / 6.000V / 60.00V / 600.0V / 1000V ±(0.4%+3) |
| Voltage (AC) | 600.0mV / 6.000V / 60.00V / 600.0V / 1000V ±(0.5%+5) |
| VFD (Voltage) | 600.0V ±(8%) |
| Current (AC) | 600.0µA / 6000µA / 60.00mA / 600.0mA / 6.000A / 10.00A ±(1.2%+3) |
| Current (DC) | 600.0µA / 6000µA / 60.00mA / 600.0mA / 6.000A / 10.00A ±(1.2%+3) |
| Resistance | 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ / 60.00MΩ ±(0.5%+2) |
| Capacitance | 6.000nF / 60.00nF ~ 600.0µF / 6000µF ±(2.0%+5) |
| Frequency (Hz) | 10Hz ~ 10MHz ±(0.1%+3) |
| Duty Cycle | 1% ~ 99.9% ±(1.0%+4) |
| Temperature (℃/℉) | ±2℃ / ±4℉ |
Main Features
| Feature | UT18B MAX |
|---|---|
| Display count | 6000 |
| Continuity / Diode | √ |
| Data hold | √ |
| MAX/MIN | – |
| Relative mode | √ |
| Backlight (adjustable) | √ |
| Auto range / Manual range | √ |
| Auto power off | √ |
| Low battery indication | √ |
| Audible & Visual alarm | √ |
| LED test | √ |
| Mis-plug alarm | √ |
| Any-key wake up | √ |
| Overvoltage category | CAT III 600V |
General Characteristics
| Characteristic | UT18B MAX |
|---|---|
| Power supply | 2 × 1.5V AA |
| Product color | 426U + 1797C |
| Product weight | 455g |
| Product dimensions | 182mm × 91mm × 45mm |
| Accessories | 1pcs User manual, 2 pair Test lead (normal gold plated & fine-tipped probe), 1pcs K-type thermocouple, 2pcs battery, Magnetic hanger (optional) |
| SPQ (Standard Pack Qty) | 10 pcs |
| Package dimensions | 480 × 370 × 195mm |
| Standard package gross weight | Around 9kg |
