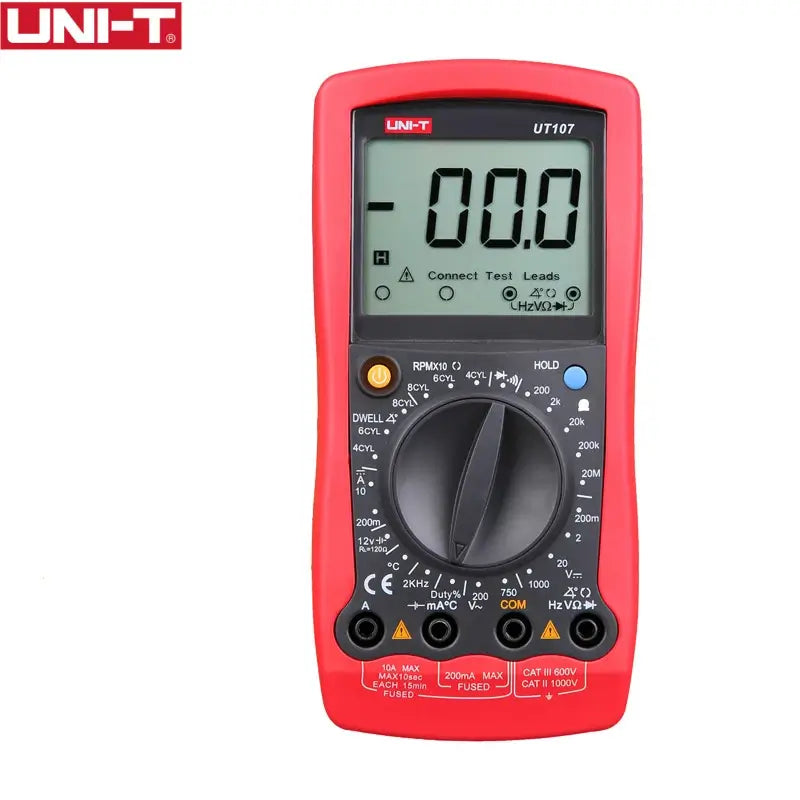

UT107 Automobile Multimeter in Pakistan
SKU:
product-9279
Availability:
Many in stock
Product type:
Meters
Rs.5,790.00
UT107 Automobile Multimeter is specially designed for automobile diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles.
Applications of UT107
Its applications include working on the fuse, switch, solenoid, relay, charging system, fuel system, engine sensing, etc.
Features of UT107
1. Diode/Data hold
2. Continuity buzzer
3. Low battery indication
4. Input protection
Specifications |
Range |
UT107 |
| DC voltage (V) | 200mV/2V/20V/1000V | ±(0.5%+2) |
| AC voltage (V) | 200V/750V | ±(0.8%+5) |
| DC current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) |
| Frequency (Hz) | 2kHz | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(2%+8) |
Secondary Features |
||
| Display count | 2000 | |
| Manual range | √ | |
| Battery test | 12V | ±(3%+5) |
| Duty cycle | 1%~90% | ±(4%+5) |
| Input impedance for DCV | Around 10MΩ | √ |
| Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
General Characteristics |
||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product color | Red and grey | |
| Product net weight | 351g (including holster) | |
| Product size | 179mm x 88mm x 39mm | |
| Standard accessories | Battery, test leads, holster, point contact temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 645mm x 450mm x 340mm | |
| Standard carton gross weight | 22.86kg | |
Package Includes:
- 1 x UT107 Automobile Multimeter
