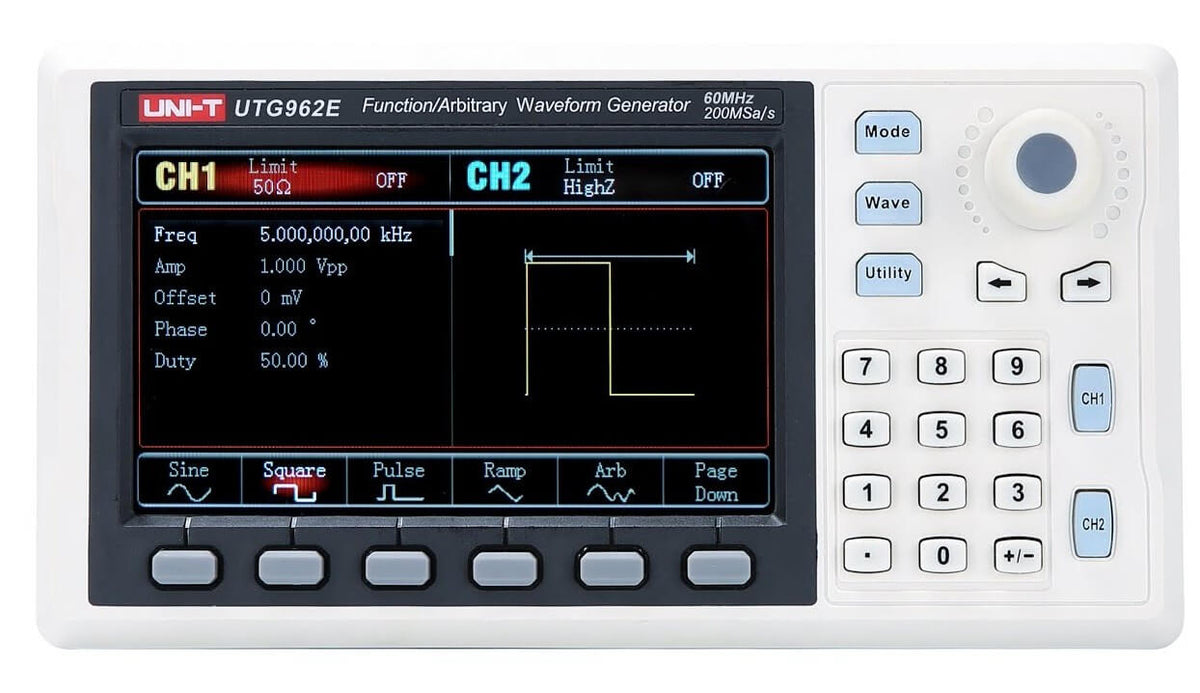

UNI-T UTG962E function generator
SKU:
product-16067
Availability:
Many in stock
Product type:
Uncategorized
Rs.0.00
Description:
The UTG962E is a compact mini handheld high power arbitrary function waveform generator with a frequency up to 60 MHz. This function generator uses direct digital synthesis (DDS) technology to produce an accurate, stable, pure, low-distortion output signal, is easy to use and provides excellent technical displays. The easy-to-use interface, user-friendly graphical display and compact size make this function generator an ideal, low-cost unit that can easily fit on any workbench.
Features:
- Compact design
- Power supply via USB power supply unit
- PC interface (USB)
- Sine, square, pulse, TTL and ramp signals
- Modulations: AM, FM, PM, FSK
- Memory: for 24 arbitrary waveforms
- Sweep function: scan type linear and logarithmic
Specification:
| Feature | Specification |
|---|---|
| Model Number | UTG962E |
| Max Output Frequency | 60MHz |
| Channels | Dual channel |
| Sample Rate | 200MSa/s |
| Arbitrary Wave Length | - |
| Vertical Resolution | 16 Bits |
| Display | 4.3-inch TFT LCD |
| Warranty | 3 years |
| Shipping Dimensions (W x H x D) | 305mmx230mmx93mm |
| Shipping Weight | 3.10Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | BNC straight-through cable, BNC to alligator clip cable, Power adapter (5V/2A, including UL, CE adapter), USB to DC power cord |
