UNI-T UT219M ACA Professional Clamp Meter with Motor Test in Pakistan
SKU:
product-6666
Availability:
Many in stock
Product type:
Clamp Meters
Rs.23,000.00
Description

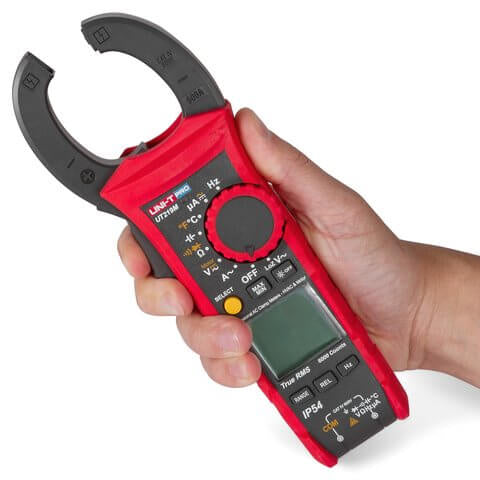

UNI-T UT219M ACA Professional Clamp Meter with CAT IV 600V rating from UNI-T. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features summary:
- 2m drop test, IP54, CAT IV 600V
- Large 6000-count display, auto backlight
- True RMS
- 3-phase motor test
- LoZ voltage test to detect ghost voltage
- 2000μA DC measurement for HVAC flame sensor
Specifications |
||
| Model | UT219M | |
| AC current (A) | 60A/600A | ±(1.8%+6) |
| AC voltage (V) | 6V/60V/600V | ±(1.0%+6) |
| LoZ ACV | 600V | ±(2.5%+6) |
| DC voltage (V) | 6V/60V/600V | ±(0.6%+3) |
| DC current (μA) | 2000μA | ±(0.9%+6) |
| AC current (μA) | 2000μA | ±(1.5%+6) |
| Resistance (Ω) | 60Ω | ±(1.5%+3) |
|
600Ω/6kΩ/60kΩ/
600kΩ/6MΩ/60MΩ |
±(1.0%+3) | |
| Capacitance | 6nF | ±(4.0%+7) |
|
60nF/600nF/6μF/
60μF/600μF/6mF/60mF |
±(4.0%+7) | |
| Frequency | 60Hz ~ 40MHz | ±(0.1%+6) |
| Temperature (℃) | -40~1000℃ | ±(2.0%+5℃) |
| Temperature (℉) | -40~1832℉ | ±(2.0%+9℉) |
Features |
||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw size | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~ 400Hz | |
| AC voltage frequency response | 40Hz~ 400Hz | |
| 3-phase motor test | 600.0V | √ |
| Diode test | 3V | √ |
| Measurement sampling rate | times/s | 3 |
| LCD display (HTN) | interface | Single |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold (H) | √ | |
| Relative mode (REL) | √ | |
| MAX/MIN | √ | |
| Function selection (SELECT) | √ | |
| Auto backlight | √ | |
| 2m drop test | √ | |
| Safety rating | IP54 | |
| Input impedance | ≥10MΩ | √ |
Device Characteristics |
||
| Power supply | AAA 1.5V alkaline battery × 3 | |
| LCD size | 35mm × 31mm | |
| Device color | Red and grey | |
| Device weight | 310g | |
| Device size | 235mm × 82mm × 47mm | |
| Standard accessories | Test leads, batteries, K-type temperature probe, carrying bag | |
| Standard individual packing | Blister, gift box, manual | |
| Standard quantity per carton | 10pcs | |
| Standard carton size | 490mm × 335mm × 330mm | |
| Standard carton gross weight | 8kg | |
Package includes:
1 x UNI-T UT219M ACA Professional Clamp Meter
