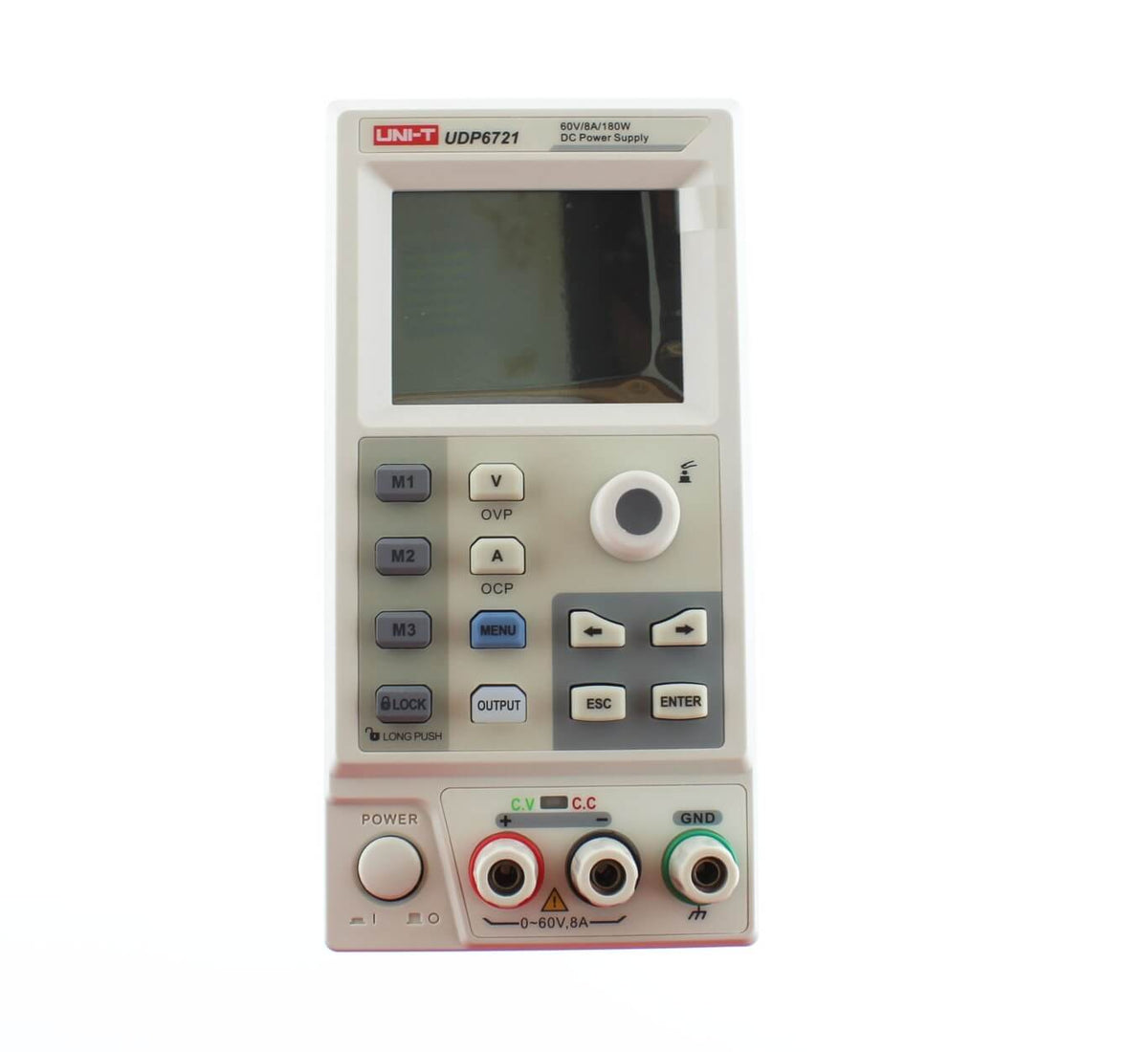

UDP6721 Adjustable Switch Regulated DC Power Supply

Description:

The UNI-T UDP6721 is a single channel 60V, 8A, 180W power supply, featuring a resolution of 10mV/1mA with a maximum of 600 memory presets, making it quite accurate with a large output range. The full color 2.8" TFT LCD display is able to show users a large number of values without need for repeated reading and recording, while also providing interaction with many adjustable parameters.

It features a RS232 serial interface, remote compensation terminals and supports SCPI protocol communication. The overvoltage, overcurrent and overtemperature protection functions guarantee high reliability. Furthermore, the integrated programmable list and delayer functions (with 48 sets of editable points) enable various automatic operations.

Models:
The models differ in the maximum voltage, current and output power.

• Total Power: 180 W

• Voltage Range: 0 ~ 60 V

• Current Range: 0 ~ 8 A

  Specification:

  Outputs	1 channel
  Output switch	Yes
  Resolution	10 mV / 1 mA
  Ripple	<2.0 mV RMS / <5.0 mA RMS
  Protection	OVP, OCP, OTP
  Interfaces	RS232 serial interface, remote compensation (SCPI protocol)
  Display	2.8" full color TFT LCD
  Dimensions	87 x 174 x 255 mm
  Weight	2.5 kg
