ET 827 40MHZ SCOPE METER In Pakistan

Description:

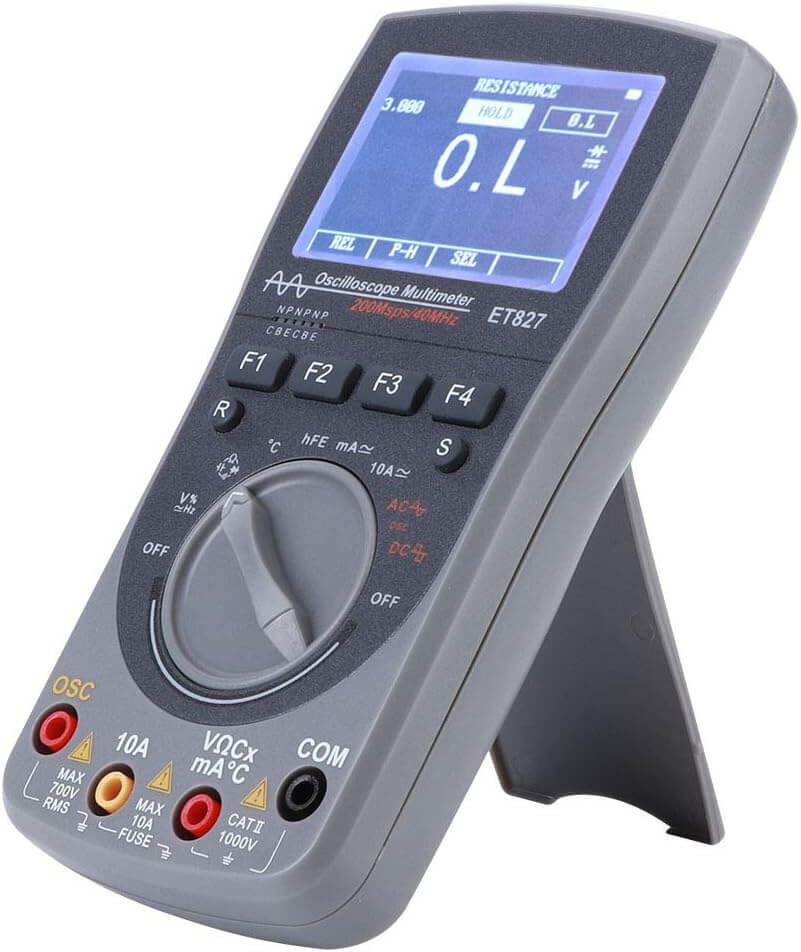

The ET827 is a handheld, 2-in-1 digital oscilloscope and 6000-count True RMS multimeter with a 40MHz analog bandwidth and 200 Msps sampling rate. Designed for electronics hobbyists and professionals, it is a portable and affordable tool for testing and debugging circuits.

• • Measurements: DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, diode, and transistor (hFE).
  • True RMS: Provides accurate measurements of AC voltage and current for non-sinusoidal waveforms.
  • Intelligent mode: Automatically detects the measurement type (voltage, resistance, or continuity) and selects the optimal range.
  • Data logging: Can store up to 100 sets of measurement data.

• • Analog bandwidth: 40MHz.
  • Maximum sampling rate: 200 Msps.
  • Trigger modes: Supports Auto, Normal, and Single-shot modes for capturing different types of signals.
  • Waveform storage: Capable of saving up to 50 waveforms for later review.
  • Auto setup: The "R" button automatically adjusts the time base and vertical amplitude for a clear waveform display.
  • Cursor measurements: Includes functions for measuring voltage differences (



    dVd cap V

    𝑑𝑉

    ) and time differences (



    dtd t

    𝑑𝑡

    ) on the waveform.

• Display: 240x160 resolution LCD with a white backlight on a black screen.
• Safety: Features overload protection and is equipped with two fuses (500mA/250V and 10A/250V).
• Power: Powered by 3 AA batteries (not included) and has a 15-minute auto-shutdown to save power.
• Dimensions: Approximately 83mm x 160mm x 32mm and weighs about 210g without batteries, making it compact and portable
