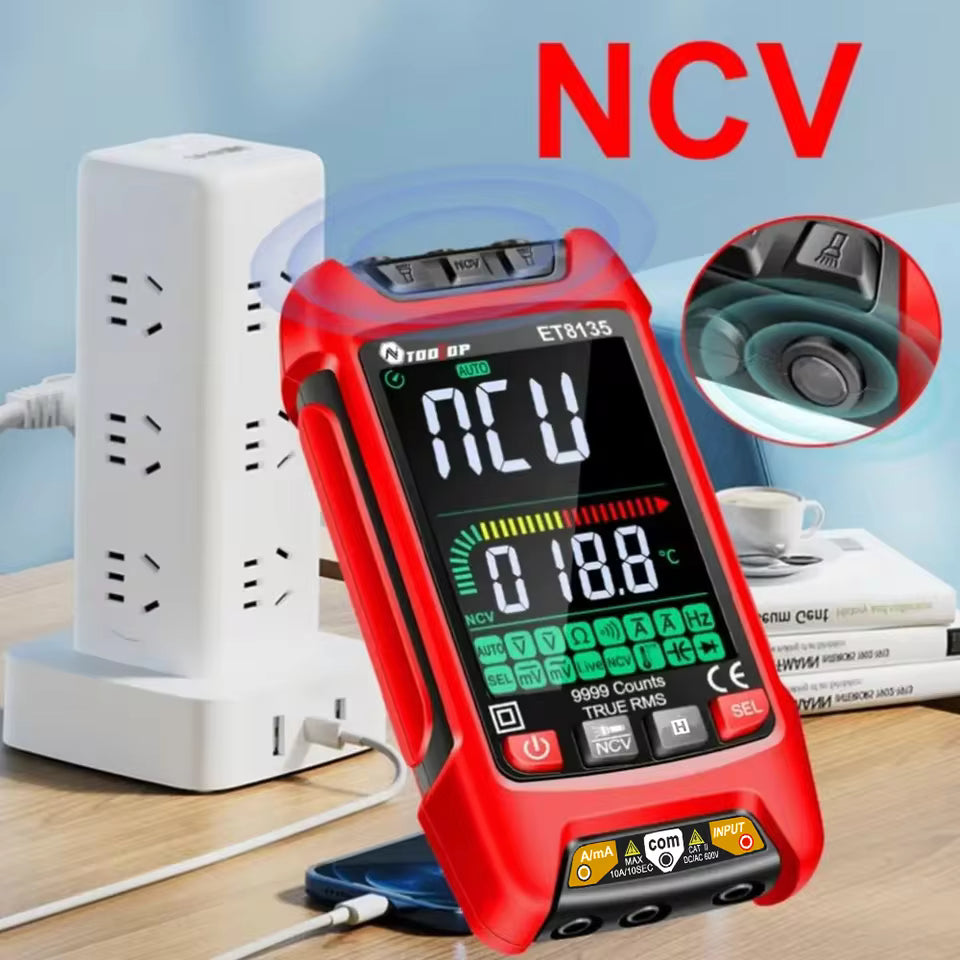

TOOLTOP ET8135 Color Intelligent True RMS Digital Multimeter

Description:
The TOOLTOP ET8135 is a budget-friendly digital multimeter with a vibrant color display, auto-ranging, True RMS functionality, and a 9999-count display. It is suitable for both professional electricians and DIY enthusiasts due to its versatile measurement capabilities and safety features.

Specifications:

Maximum permissible voltage between the measurement terminal and ground: 1000V DC or 600V AC.

Display: Color LCD

Maximum display value: 9999 digits.

Polarity indication: Automatic, with “_” indicating negative polarity

Over range display: “OL” or “OL”

Sampling rate: approximately 3 times per second

Unit display: Functional with unit indication

Auto power-off time: 15 minutes

Power supply: 2*1.5V AAA batteries(Not included)

Low battery indication: support

Operating temperature: 0°C to 40°C

Storage temperature: -20°C to 60C

AC Current：6000mA/10A

DC Current：6000mA/10A

DC Voltage:600.0mV/9.999V/99.99V/999.9V

AC Voltage:600.0mV/9.999V/99.99V/600.0V

Line on-off Test：＜50Ω

Resistance:999.9Ω/9.999K Ω/99.99K Ω/999.9K Ω/9.999M Ω/99.99MΩ

Diode Test: Open Circuit Voltage: Approximately 2.8V

Capacitor：9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

NCV：YES

Temperature：-40~1000℃/-40~1832℉

Frequency：100Hz/1000Hz

Backlight: yes
