MULTIMETER 18B+ FLUKE In Pakistan

Use 18B+ multimeter to check and test most electronic products. The instrument is easy to use and is significantly improved compared with the original Fluke 18B. Applicable to anyone engaged in electronic maintenance and manufacturing Settings.

Feature:

600 V Cat III safety design index.
The display range is 50% and the backlight is bright white.
Intelligent LED test lighting LED (regardless of polarity) allows you to test LED in two modes:
DMM LED socket test mode.
LED test mode on UUT (PCBA) (using test lead)
Voltage, resistor, current, capacitance.
Diode testing, data retention.
Frequency and duty ratio.
The input terminal's ac and dc current measurements are 10A

Technical indicators

Precision specifications

Can keep 1 year after the calibration accuracy, the work temperature of 18 ° C to 28 ° C, relative humidity of 0% to 75%. The precision form is as follows: + / + ( + ).

Function, Range Resolution, Precision.

Ac voltage (40 Hz - 500Hz)¹	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0 % + 3
DC voltage	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5 % + 3
Ac voltage (millivolt)	400.0 mV	0.1 mV	3.0 % + 3
Dc voltage (millivolt)	400.0 mV	0.1 mV	1.0 % + 10
Diode test	2.000 V	0.001 V	10%
Resistance (ohm)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 o.5 % + 2 o.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5.0 % + 5 5 % + 5 5 % + 5
frequency ¹ Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty ratio¹	1 % - 99 %	0.1%	1 %，Typical case⁴
Alternating current μA (40 Hz - 400 Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
Alternating current mA (40 Hz - 400 Hz)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
Alternating current A (40 Hz - 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
Dc current μA	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
Dc current mA	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
Dc current A	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3

1, the range of all current, frequency and duty ratio is 1 % to 100 % of the range. The input value is not specified below the range of 1 %.

2,Normally, the open circuit test voltage is 2.0v and short-circuit current < 0.6ma.

3,The specification does not include the error caused by the test lead capacitance and capacitance plate (the maximum error is 1.5nf when the range is 40 nF).

4, usually means that the frequency is 50 Hz or 60 Hz, which is between 10 % and 90 %.

Function	luminance range	measuring range	resolution	precision.
LED VF test 1(LED test socket)	1.00 to 6.00 V	NA	N/A	NA
LED VF test 2 (test lead)	1.00 to 6.00 V	1.00 to 6.00 V	0.01 V	10 % ³
Breaking threshold	NA	N/A	NA	70Ω
1. Open circuit test voltage is plus or minus 12 V, short circuit current > + 5 mA (usually) 2 open circuit test voltage is plus or minus 12 V, short circuit current > plus or minus 3 mA (usually) 3 VF measurement, the driving current is lower than 2.2 + 0.4ma.

Function,	overload protection	input impedance (nominal value)	common mode rejection ratio,	conventional mode rejection ratio.
Ac voltage	1000 V¹	>10 MΩ <100 pF	In direct current, 50 Hz or 60 Hz, greater than 60 dB.	-
Ac voltage (millivolt)	400 mV	>1MΩ，<100 pF	At 50 Hz or 60 Hz, greater than 80 dB.	-
Dc voltage	1000 V¹	>10 MΩ <100 pF	In direct current, 50 Hz or 60 Hz, greater than 100 dB.	At 50 Hz or 60 Hz, greater than 60 dB.
Dc voltage (millivolt)	400 mV	>1MΩ，<100 pF	At 50 Hz or 60 Hz, greater than 80 dB.

1, 10, 6 V Hz maximum.

General technical indicators
Maximum voltage between any terminal and ground.	1000 V
Display (LCD)	4000 counts, updated 3 times per second.
The battery type	2 AA，NEDA 15A，IEC LR6
Battery life.	Minimum 500 hours of LED test mode and 50 hours without load. With load, battery life depends on the type of LED being tested.
temperature
Working temperature	0 °C - 40 °C
Storage temperature	-30 °C - 60 °C
Relative humidity
Working humidity	The condensation (< 10 ° C) 10 ° to 30 ° C, C less than or equal to 90% RH. When you go from 30 to 40 C, it's less than or equal to 75%.
Working humidity	40 M Ω range 10 ° to 30 ° C, C less than or equal to 80% RH. 30 ° C to 40 ° C, less than or equal to 70%
At an altitude of
Working temperature	2000 m
Storage temperature	12000 m
The temperature coefficient of	0.1x (specified precision)/C (< 18%c or >28 C)
Fuse protection for current input.	440 mA, 1000 V fast melting, limited only to the specified Fluke parts. 11A, 1000V fast melting, limited to the specified Fluke parts.
Volume (height x width x length)	183 x 91 x 49.5 mm
The weight of the	455 g
The IP rating	IP 40
security	IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, pollution level 2.
Electromagnetic environment	IEC 61326-1： portable
Electromagnetic compatibility	Only in Korea.
Class A equipment (industrial broadcasting and communications equipment) 1. This product meets the requirements of the industry (A) electromagnetic wave equipment, the salesman or. Users should be aware of this. The equipment is suitable for business environment. Not suitable for family use.

Model and accessories

Model name

description.

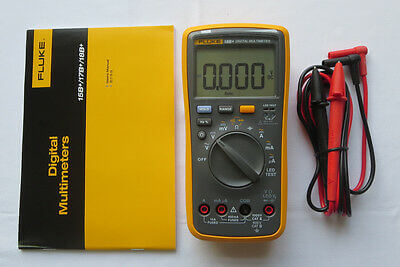

FLUKE-18B+

Fluke 18B+ Digital multimeter.
Include:TL75 test leads with two hats.Thermocouple temperature detector.

Section 2 AA battery

The user manual

Machine cover and pendant.
TPAK	ToolPak™

Test Leads
Fluke (Fluke) TL175, rotating pen.	Fluke (Fluke) TL175, rotating pen.
