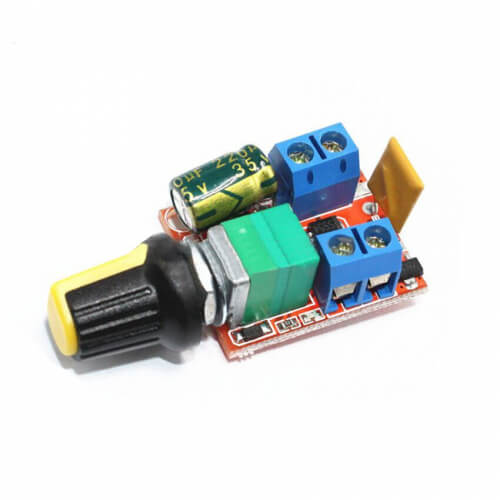

Mini DC Motor PWM Governor Speed Controller Switch Regulator 3V6 12 24 35V 90W Ultra Small LED Light Modulator 5A 10khz In Pakistan

Mini DC Motor PWM Governor Speed Controller Switch Regulator adopts the latest low voltage drive technology, the current is up to 5A, the smallest volume is only 1 yuan coin size, the applicable voltage is the widest 3-35V, and it is equipped with a self-recovery fuse, pocket DC governor, Also suitable for LED dimming.

Features of Mini DC Motor PWM Governor Speed Controller Switch Regulator:

With high voltage and high current self-recovery fuse, the current is automatically disconnected, the fuse is automatically restored after a few seconds of power-off cooling, almost never need to change the fuse
Input voltage selection is divided into two gear positions. By default, the short-circuit point is applied to the voltage of 5-35V input.
If the short-circuit point is connected, the low-voltage 3-15V input is applied. The default is to disconnect the short-circuit point and apply the voltage to 5-35V input. Low voltage input gear can be changed by yourself.

Specifications of Mini DC Motor PWM Governor Speed Controller Switch Regulator:

Working voltage: DC3V-35V
Control power: 90W (maximum)
Quiescent current: 0.015A (standby state)
PWM duty cycle: 1%-100%
PWM frequency: 10khz
Model: ZS-X4A
Shell size: 30MMx width 24MM (without handle) total height 15MM

Package Includes:

1 x Mini DC Motor PWM Governor Speed Controller
