Mini 360 DC to DC Step Down Buck Converter Module – MP2307DN

The Mini 360 DC to DC Step Down Buck Converter is a compact adjustable voltage regulator module designed to convert a higher DC input voltage into a lower regulated DC output voltage. Built around the MP2307DN switching regulator IC, this miniature buck converter is suitable for electronics projects where efficient voltage reduction and limited installation space are important.

With an adjustable output voltage, compact PCB design and onboard adjustment potentiometer, the Mini 360 module is useful for powering microcontrollers, sensors, embedded electronics and other low-voltage DC devices.

Key Features

• MP2307DN Regulator IC: Switching regulator designed for DC voltage step-down applications.

• Adjustable Output Voltage: Output can be adjusted using the onboard potentiometer.

• Wide Input Range: Supports 4.75V to 23V DC input.

• Compact Design: Miniature PCB suitable for space-constrained electronics projects.

• Synchronous Rectification: Supports efficient power conversion.

• High Switching Frequency: Operates at a typical switching frequency of 340kHz.

• Non-Isolated Buck Converter: Provides step-down DC voltage regulation.

Technical Specifications

Applications

• Arduino and microcontroller projects

• ESP32 and embedded electronics

• Battery-powered electronic devices

• IoT and sensor projects

• Small DC-powered circuits

• DIY electronics and robotics

• Low-voltage electronic equipment

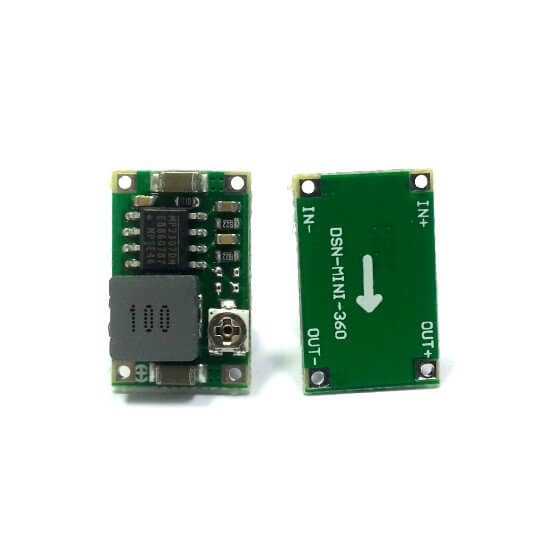

Connection Guide

Input:

• IN+ : Positive DC input

• IN− : Negative DC input

Output:

• OUT+ : Positive regulated output

• OUT− : Negative output

Connect the DC input supply with the correct polarity. Adjust the onboard potentiometer while measuring the output using a multimeter. Verify the output voltage before connecting your electronic device.

Important Precautions

• This module is a step-down converter; it cannot increase voltage.

• Never exceed the specified input voltage range.

• Do not treat 3A peak current as continuous output current.

• Provide adequate cooling when operating under higher loads.

• Always check output voltage and polarity before connecting sensitive electronics.

Package Includes:

• 1 × Mini 360 DC to DC Step Down Buck Converter Module (MP2307DN)
