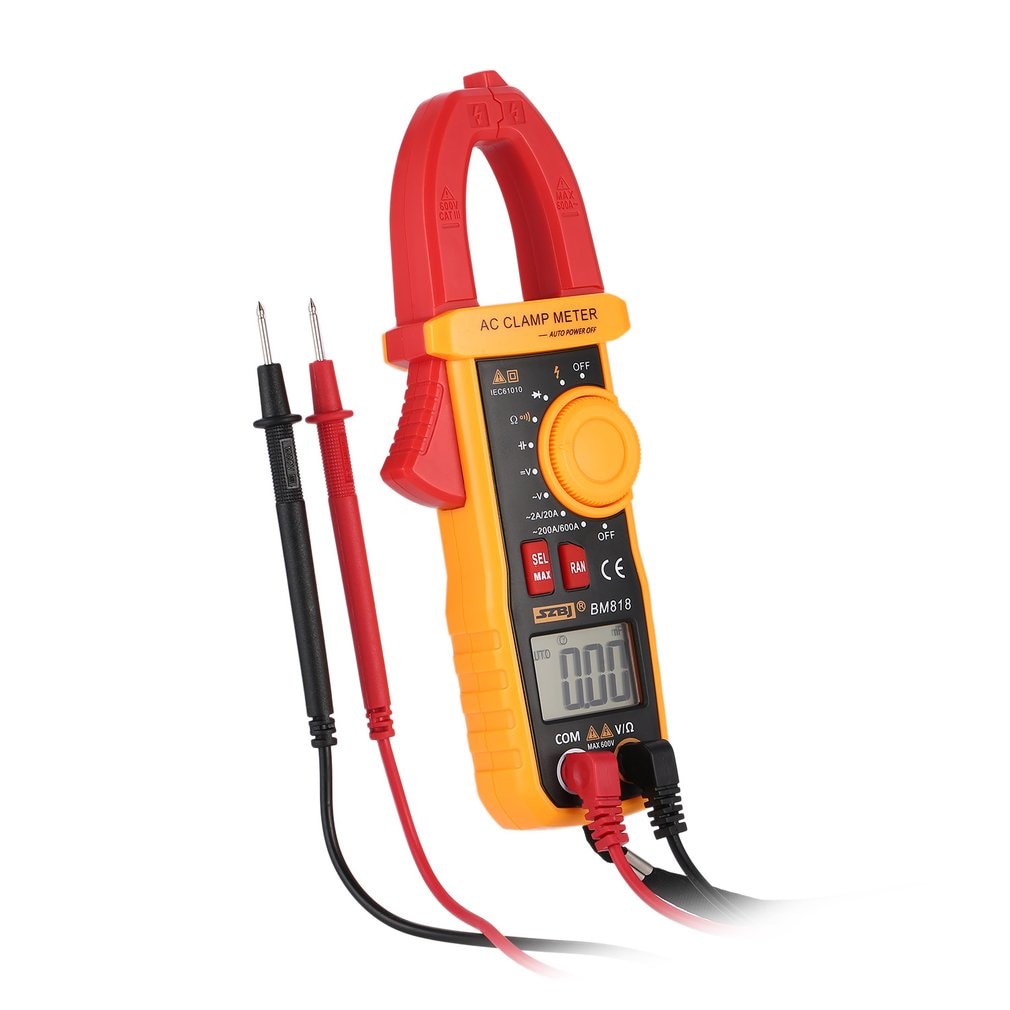

CLAMP METER AC BM 818

Description:
The BM 818 is a multifunctional digital clamp meter from the manufacturer SZBJ, not Brymen. The device is designed for a wide variety of electrical measurements in residential, industrial, and laboratory settings.

• Measurement capabilities: The BM 818 can measure AC/DC voltage, AC current, resistance, and capacitance.
• Non-Contact Voltage (NCV) detection: An NCV sensor allows for safer and easier detection of live AC voltage without physical contact.
• Display: It features a large, backlit LCD screen for easy reading, even in low-light conditions. The display shows up to 1999 counts.
• Jaw size: The meter has a clamp jaw with a maximum opening of 27mm for measuring current on conductors.
• Safety and convenience: The BM 818 not only measures AC current, voltage, and resistance but also includes extra functions. For example, it offers a diode test and a continuity buzzer. Moreover, you can rely on its data hold, auto power-off, and low-battery indication to make usage safer and more convenient. Therefore, this clamp meter proves to be a reliable tool for both professionals and hobbyists.

• AC Current: 2A, 20A, 200A, 600A
• DC Voltage: 200mV, 2V, 20V, 200V, 600V
• AC Voltage: 2V, 20V, 200V, 600V
• Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
• Capacitance: 20nF, 200nF, 2µF, 20µF, 200µF, 2000µF

• HVAC technicians: For measuring current draws on motors and compressors.
• Electricians: For general circuit and wire testing.
• DIY enthusiasts: A versatile and easy-to-use tool for home electrical projects
