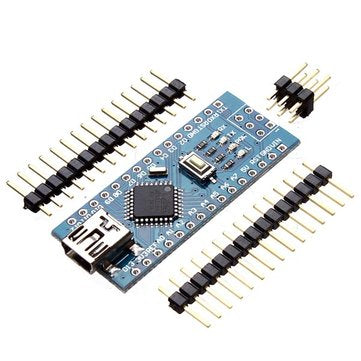

Arduino Nano V3

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328.It has more or less the same functionality of the Arduino UNO V3 but in a different package. Arduino Nano lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Specifications of Nano 3.0:

1. Microcontroller: ATmega328
2. Architecture: AVR
3. Operating Voltage: 5 V
4. Input Voltage: 7-12 V
5. Digital I/O Pins: 14 (of which 6 provide PWM output)
6. Analog Input Pins: 8
7. DC Current per (I/O) Pin: 40 mA (I/O Pins)
8. Flash Memory: 32 KB (ATmega328) of which 2 KB used by the boot loader
9. SRAM: 2 KB (ATmega328)
10. EEPROM: 1 KB (ATmega328)
11. Clock Speed: 16 MHz
12. Digital I/O Pins: 22
13. PWM Output: 6
14. Power Consumption: 19ma
15. PCB Size : 18 x 45 mm
16. Dimensions : 0.73" x 1.70"
17. Weight: 7 g
