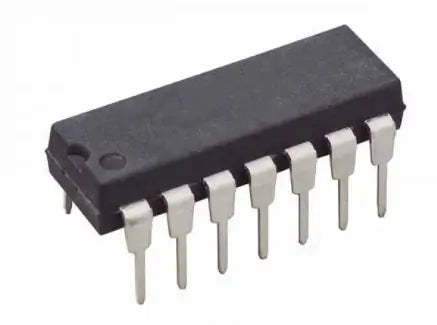

74126 Ic Quad Bus Buffer Tri-state
SKU:
product-16521
Availability:
Many in stock
Product type:
Uncategorized
Rs.0.00
74LS126 Features
- Quad Bus Buffers with 3-State Outputs
- Separate Control for each Channel
- High-Impedance Output State
- Standard TTL Switching Voltages
74LS126 Specifications
| Supply Voltage | 4.75 – 5.25Vdc |
| Maximum Clock Frequency | 40Mhz |
| Power Dissipation | 2mW/gate @100kHz |
| Minimum Output Current | 8mA |
| Propagation Delay | 10nS |
| Fan Out (TTL Loads) | 20 |
74LS126 Pinout Diagram
