Description

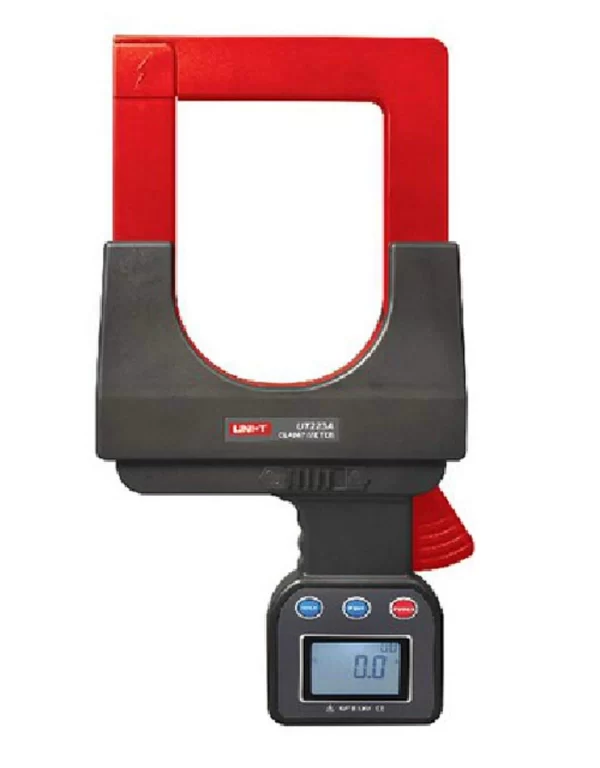

UT223A Large Jaws Clamp Meter is designed for testing large AC current up to 4000A with a resolution of 0.1A. This device is designed with anti-interference mechanisms which improve measurement results around areas with electromagnetic interference.
Features of UT223A:
1. Large 108×148mm jaw, equipped with a locking bolt
2. 4 Digits LCD display
3. Auto range, 2/s sampling rate
4. Peak test
5. Manual range/99 sets storage data
6. RS232 interface
7. Data hold
8. Auto power off
9. Overload protection, low battery indication
Specifications |
Range |
Best Accuracy |
|
| Model | UT223A | ||
| Current (A) | Range | 0.0mA～499A | ±(2%+5) |
| 500A～999A | ±(3%+5) | ||
| 1000A～2999A | ±(4%+5) | ||
| 3000A～4000A | ±(5%+5) | ||
| Resolution | 0.1A | ||
| Test Range | AC 0.A～4000A | √ | |
Secondary Features |
|||
| Display Mode | 4 Digits LCD Display | √ | |
| Clamp Size | 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm*4mm flat cable and steel earth wires) | √ | |
| Auto Range | √ | ||
| RS-232 | √ | ||
| Data Storage | 99 | ||
| LCD Backlight | √ | ||
| Date Hold | √ | ||
| Overload Protection | OL | √ | |
| Auto Power Off | 5 Minutes | √ | |
| Low Battery Indication | ≤5.2V | √ | |
| Test Model | Clamp CT, integral mode | √ | |
General Characteristics |
|||
| Power | 6V DC (LR6×4 Alkaline Batteries) | ||
| LCD Size | 47mm×28.5mm | ||
| Product Color | Red and grey | ||
| Product Net Weight | 1.5kg (Included Batteries) | ||
| Product Size | 350mm×180mm×55mm | ||
| Standard Accessories | Batteries, RS232 Interface Cable, Software CD, Toolbox | ||
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | ||
| Standard Quantity Per Carton | 6pcs | ||
| Standard Carton Measurement | 610X375X320mm | ||
| Standard Carton Gross Weight | 35kg | ||
Package Includes:
- 1 x UT223A Large Jaws Clamp Meter
