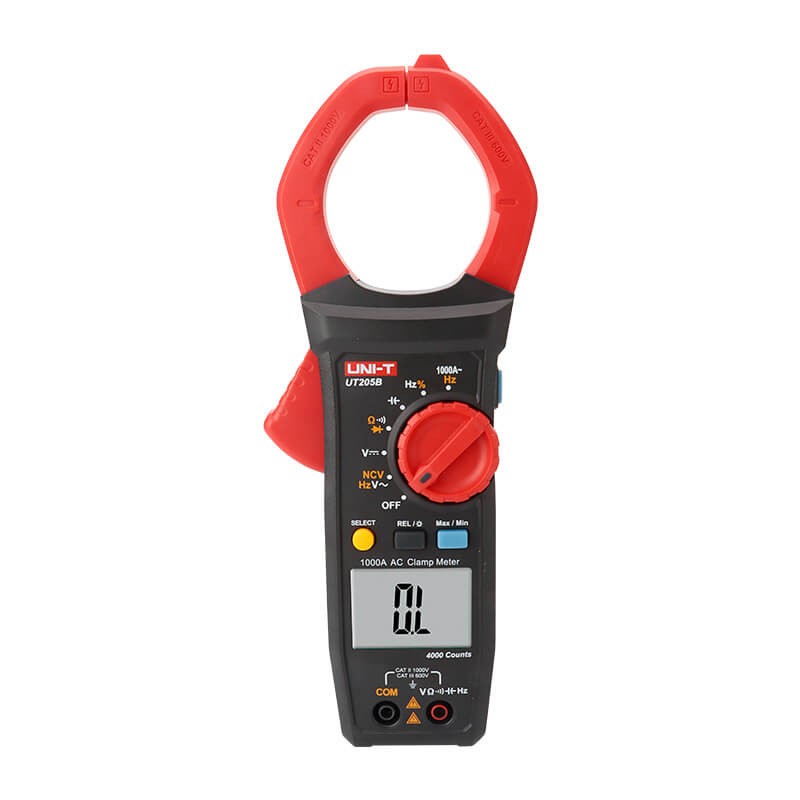

Features of UT205B 1000A AC Clamp Meter
Certificates: ROW
● 1000A AC current measurement
● 1000V AC/DC voltage measurement
● 40MΩ resistance measurement
● 40mF capacitance measurement
● 10MHz frequency measurement
● Duty cycle/NCV test/flashlight
● Diode/Continuity Test
● Relative value/Max & Min value
● 55mm Clamp jaw size, opening 60mm
● Pliers head uses an air core coil, which is light-weight and easy to carry
Specifications of UT205B 1000A AC Clamp Meter
| Specifications | Range | Accuracy |
| AC current (A) | 1000A | ±（1.5%+5) |
| ACA frequency (Hz) | 40Hz～1kHz | ±（1.0%＋5） |
| AC voltage (V) | 1000V | ±（1.0%＋2） |
| ACV frequency (Hz) | 10Hz～10kHz | ±（1.0%＋5） |
| DC voltage (V) | 1000V | ±（0.8%＋2） |
| Resistance (Ω) | 40.00MΩ | ±(2.5%+5) |
| Capacitance (F) | 40mF | ±(10%) |
| Frequency (Hz) | 10Hz ～ 10MHz | ±（0.1%+4) |
| Duty cycle | 0.1%～99.9% | ±（3.0%+5) |
| Features | ||
| Jaw opening | 60mm | |
| Jaw size | 55mm | |
| NCV | √ | |
| Continuity | √ | |
| Diode test | √ | |
| LCD screen | 42*30mm | |
| Display count | 4099 | |
| Low battery indication | √ | |
| Data hold | √ | |
| Auto power off | Around 15 minutes | |
| Max/Min | √ | |
| Flashlight | √ | |
| Backlight | √ | |
| Relative mode | √ | |
| Overvoltage category | CAT II 1000V/CAT III 600V | |
