Description:

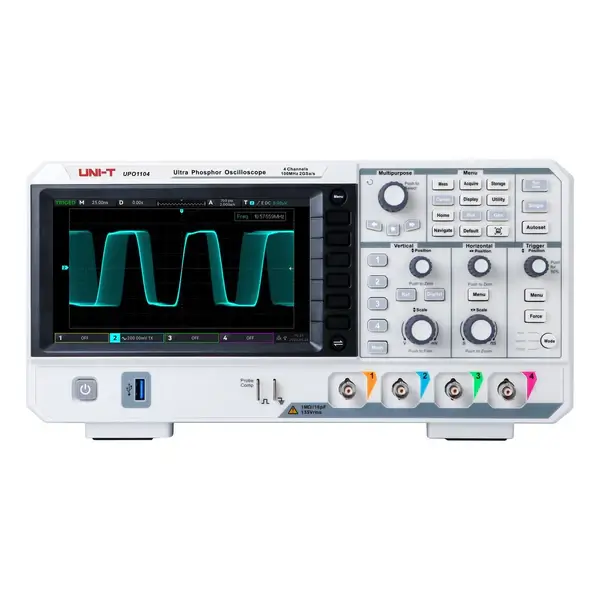

UPO1104 digital oscilloscope adopts UNI-T’s newly created digital 3D technology Fast Acquire Phosphor. It is equipped with three levels of bandwidth of 50MHz/100MHz/200MHz, and the real-time sampling rate is as high as 2GSa/s. The whole series is equipped with 4 channels as standard; supports independent DVM module; has rich trigger and bus decoding functions and supports full-memory hardware real-time decoding. It can be widely used in communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development/education and many other fields.
- Bandwidth: 100MHz
- Channel: 4
- Sampling rate: 2 GSa/s
- Waveform capture rate: 150,000 wfm/s, 500,000 wfm/s (Fast Acquire)
- Storage depth: 56 Mpts
Technical Specifications:
- Bandwidth: 100MHz
- Channel: 4
- Sampling rate: 2 GSa/s
- Waveform capture rate: 150,000 wfm/s, 500,000 wfm/s (Fast Acquire)
- Storage depth: 56 Mpts
- Vertical Range: 8-bit
- Vertical Scale: 1 MΩ: 500μV/div to 20 V/div
- Gain accuracy:
- <10mV: ±4.0% full scale
- ≥10mV: ±3.0% full scale
- Time base range: 2 ns/div to 1000 s/div
- Frequency meter: 7 digit
- Bus Analysis: RS232/UART, I2C, SPI
- Auto Measurement: 36
- Waveform recording: 120,000
- FFT points: 1Mpts
- Interface: USB Host, USB Device, LAN
