Description:

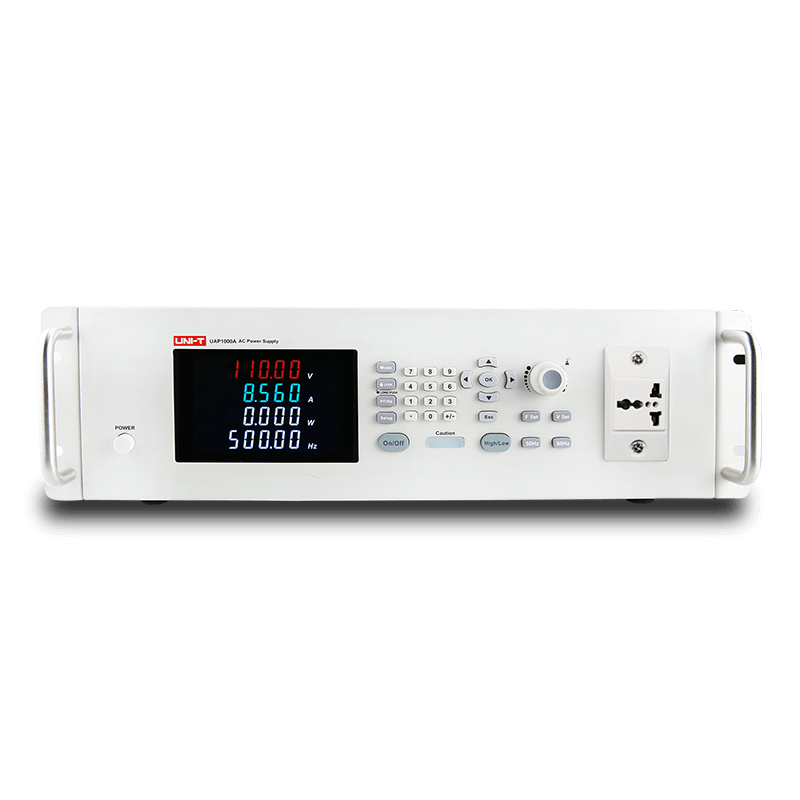

UAP 500A / UAP 1000A are AC sources. Provide low distortion sine wave output and measurement of power supply accuracy. Four windows LCD fully displays the measured data. Remote control can be completed via RS-232C. This series of power supplies can simulate normal and abnormal AC input conditions and measure the important electrical performance parameters of the object to be measured. It is applicable to electronic and motor industry, lighting, R & D, and quality inspection fields.
One key switching H/L voltage
This series of AC source has two voltage levels: high section and low section. One key switching high and low voltage output. Full range adjustable output voltage 0-150V / 0-300V.
Four windows display
These two AC sources have four window display function. The requirement of simultaneous observation of multiple parameters can be realized. It saves time for parameter switching and reading.
9 groups of presets
UAP500A/1000A provides 9 sets of parameter presets. Common parameters can be pre stored and quickly retrieved during use to improve test efficiency.
Remote control
UAP500A/1000A is equipped with RS232 communication interface. SCPI and MODBUS protocols are supported. You can use the upper computer provided by us for remote control, or you can write control programs freely and integrate them into your automation system.
Numeric keys
The power supply of this series has numeric keyboard, knob, and direction key, which can effectively speed up the speed of parameter setting and simple operation.
Dual output
UAP500A/1000A is equipped with front and rear output sockets. You can freely choose front wiring or rear wiring according to the test environment.
Specifications:
- The output voltage is constant and continuously adjustable
- OUTPUT CAPACITY: 1000VA
- VOLTAGE RANGE: L:150V；H:300V
- CURRENT RANGE: L:8.4A；H:4.2A
- With current limiting protection, if the current exceeds the limit, the output will be automatically closed
- Advanced direct digital frequency synthesizer (DDS) waveform generation technology is adopted, with high frequency stability and good continuity
- Provide embedded intelligent PC monitoring system
- Full range adjustable output voltage 0-150V / 0-300V, step: 0.01V
- Output frequency: 45Hz-250Hz, step: 0.01Hz
- RS232C communication interface
- Provide voltage, active power, frequency, and power factor readings
- Digital key input of voltage, frequency and current with high accuracy
- 9 groups of voltage, current and frequency settings can be called at will
- One key switching high and low voltage output
- Output delay can be set as required
