ET 828 1MHZ SCOPE METER In Pakistan

Description:

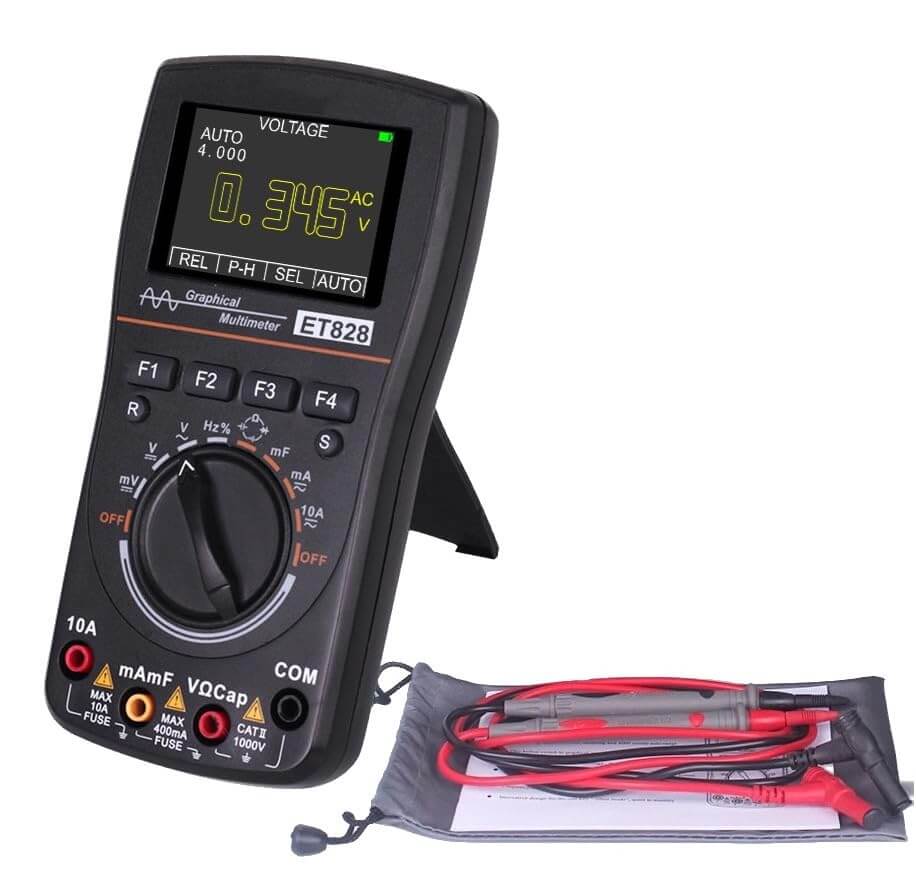

The ET828 is a portable 2-in-1 digital graphical multimeter and oscilloscope. In addition, it features a 1 MHz analog bandwidth and a 2.5 Msps real-time sampling rate, which makes it highly suitable for accurate measurements. Furthermore, this device is ideal for a variety of tasks, including troubleshooting electronic circuits and educational purposes. Therefore, whether you are a hobbyist, student, or professional, the ET828 provides reliable performance. Moreover, its compact design allows easy portability, so that you can test electronics anywhere. Also, the intuitive interface ensures that both beginners and experienced users can operate it efficiently. As a result, this versatile tool saves time while delivering precise results.

• • Dual functionality: Serves as both a graphical oscilloscope and a 4,000-count digital multimeter, with a single button to switch between modes.
  • Display: Features a 2.4-inch, 320×240 pixel color screen with an LED backlight for clear visibility in various lighting conditions.
  • Data storage: Can store up to 100 sets of multimeter data and 10 sets of waveform data for later analysis.
  • User interface: Includes a one-button automatic waveform capture and a manual/auto-ranging function for ease of use.
  • Power source: Runs on three AA batteries and has a battery life of over 10 hours. It also includes a 15-minute automatic sleep function that can be disabled.
  • Safety: Equipped with overload protection and a double fuse (500mA/10A) for enhanced safety.

• • Analog bandwidth: 1 MHz (limited to AC voltage measurements).
  • Sampling rate: 2.5 Msps (mega-samples per second).
  • Scan modes: Offers three waveform scanning modes: Auto, Normal, and Single.
  • Trigger settings: The user can manually adjust parameters such as the time base, amplitude, and trigger edge (rising or falling).
  • Auto measurement: Automatically measures and displays parameters like peak-to-peak voltage (



    Vp−pcap V sub p minus p end-sub

    𝑉𝑝−𝑝

    ), average voltage (



    Vavgcap V sub a v g end-sub

    𝑉𝑎𝑣𝑔

    ), root-mean-square voltage (



    Vrmscap V sub r m s end-sub

    𝑉𝑟𝑚𝑠

    ), and frequency (



    Hzcap H z

    𝐻𝑧

    ).

• DC voltage: Measures up to 1000V.
• AC voltage: Measures up to 750V.
• AC/DC current: Measures up to 10A.
• Resistance: Measures up to 40 M



  Ωcap omega

  Ω

  .

• Capacitance: Measures a wide range, from 0.1 nF to 100 mF.
• Frequency and duty cycle: Measures frequency and duty cycle.
• Diode and continuity tests: Includes tests for diodes and circuit continuity.
• Relative value mode: Allows for relative value measurements to account for lead resistance and interference.
