Description:

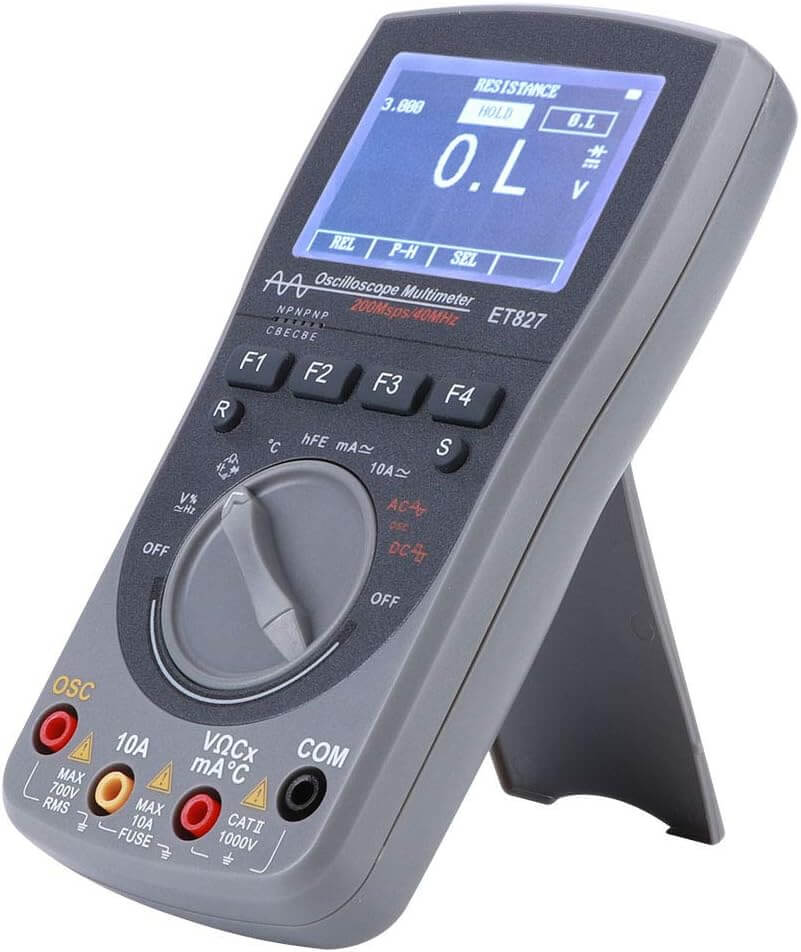

The ET827 is a handheld, 2-in-1 digital oscilloscope and 6000-count True RMS multimeter with a 40MHz analog bandwidth and 200 Msps sampling rate. Designed for electronics hobbyists and professionals, it is a portable and affordable tool for testing and debugging circuits.
Multimeter features:
The ET827 offers a range of standard multimeter functions with high precision.
-
- Measurements: DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, diode, and transistor (hFE).
- True RMS: Provides accurate measurements of AC voltage and current for non-sinusoidal waveforms.
- Intelligent mode: Automatically detects the measurement type (voltage, resistance, or continuity) and selects the optimal range.
- Data logging: Can store up to 100 sets of measurement data.
Oscilloscope features:
The device integrates a single-channel oscilloscope for waveform analysis, allowing direct measurement without an external probe.
-
- Analog bandwidth: 40MHz.
- Maximum sampling rate: 200 Msps.
- Trigger modes: Supports Auto, Normal, and Single-shot modes for capturing different types of signals.
- Waveform storage: Capable of saving up to 50 waveforms for later review.
- Auto setup: The “R” button automatically adjusts the time base and vertical amplitude for a clear waveform display.
- Cursor measurements: Includes functions for measuring voltage differences (
dVd cap V
𝑑𝑉
) and time differences (
dtd t𝑑𝑡
) on the waveform.
Key specifications:
- Display: 240×160 resolution LCD with a white backlight on a black screen.
- Safety: Features overload protection and is equipped with two fuses (500mA/250V and 10A/250V).
- Power: Powered by 3 AA batteries (not included) and has a 15-minute auto-shutdown to save power.
- Dimensions: Approximately 83mm x 160mm x 32mm and weighs about 210g without batteries, making it compact and portable
