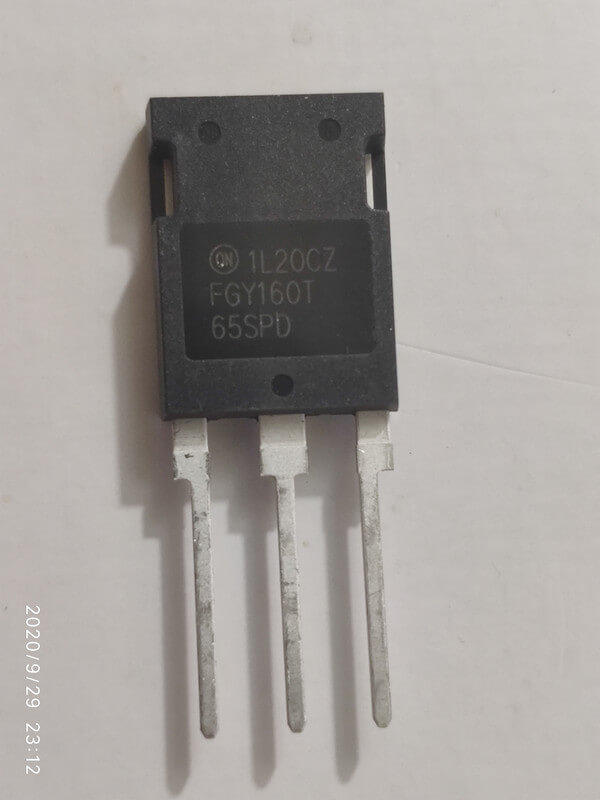

Onsemi 160A 650V FGY160T65SPD Onsemi IGBT

Product Description:

The FGY160T65SPD-F085 is a high-performance Field-Stop Trench IGBT designed for demanding industrial and automotive applications. Rated at 650 volts and 160 amps, it combines low conduction loss with high-speed switching and excellent thermal efficiency. It also integrates a soft, fast-recovery diode for enhanced performance in half-bridge and inverter circuits.

Engineered for reliability and efficiency, this IGBT offers low saturation voltage, fast switching, and rugged short-circuit capability. It is AEC-Q101 qualified, making it a dependable choice for automotive powertrain systems, industrial inverters, EV charging stations, and motor drives.

Key Features:

• Collector-Emitter Voltage: 650V

• Collector Current: 160A continuous, 240A max at 25°C

• Pulsed Collector Current: Up to 480A

• Saturation Voltage (V_CE(sat)): Typically 1.6V at 160A

• Gate-Emitter Voltage: ±20V (Threshold ~5V)

• Maximum Junction Temperature: 175°C

• Switching Speeds:

  • Turn-on Delay: ~53ns

  • Turn-off Delay: ~98ns

  • Rise/Fall Time: ~197ns / ~141ns

• Switching Energy:

  • Turn-on Energy: ~12.4mJ

  • Turn-off Energy: ~5.7mJ

• Power Dissipation: Up to 882W

• Thermal Resistance (R_θJC): 0.17°C/W

• Built-in Diode: Soft and fast recovery

• Package Type: TO-247-3LD

Typical Applications:

• EV powertrains and electric vehicle inverters

• Industrial motor drives

• UPS systems

• Welding machines

• High-efficiency DC/AC power conversion

• Battery charging stations (EV chargers)

The package includes:
1 x Onsemi 160A 650V FGY160T65SPD Onsemi IGBT
