Description:

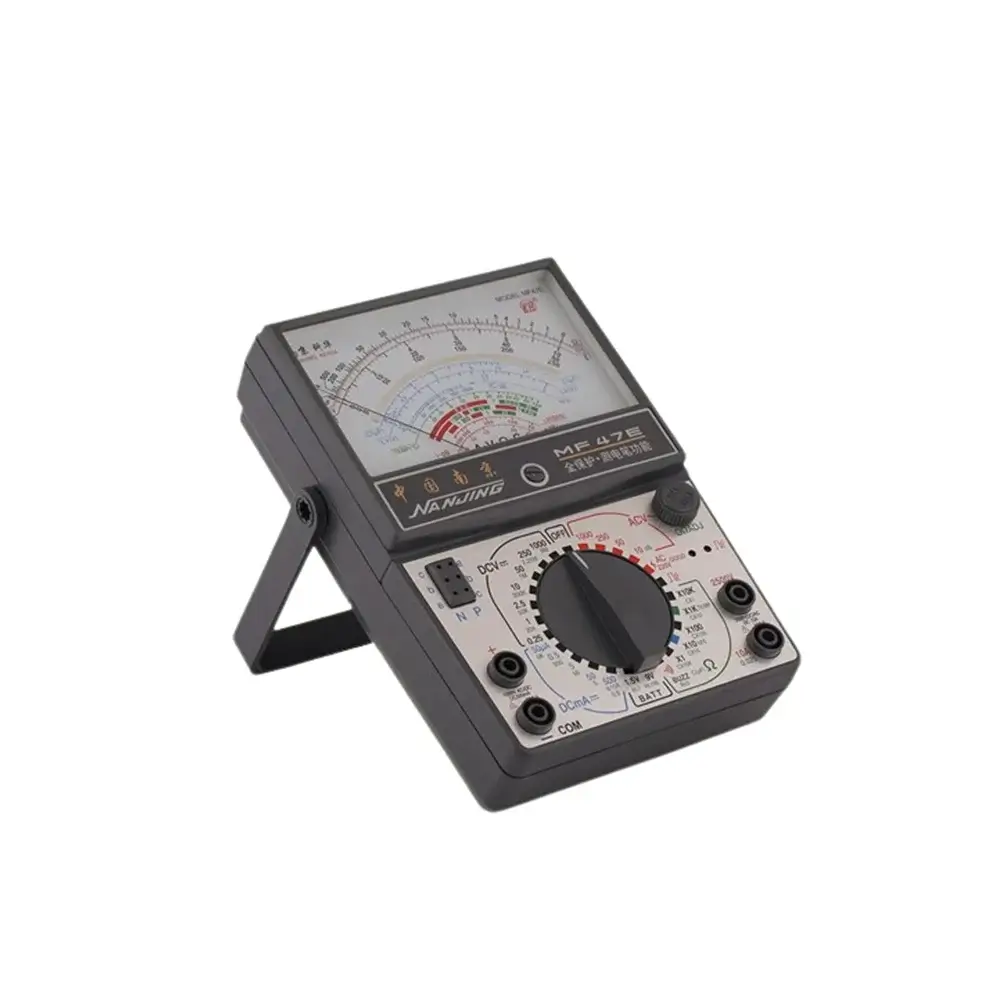

The MF-47E is a portable analog multimeter that uses a pointer display for measurements. Often used in school labs, electronics repair, and general home use, it can measure various electrical properties through a rotary knob. The “E” and “N” models often denote slight variations in function or scale, but they share the same fundamental purpose.
Functions and features:
The MF-47E is a multi-purpose tool for basic electrical work.
- Measurements: It can measure AC and DC voltage, DC current, and resistance. Some variants also include capacitance and battery testing.
- Continuity testing: Many models are equipped with a buzzer for easy continuity checks.
- Display: It features a classic pointer display with a clear, multiple-scale layout for reading measurements.
- Protection: It has built-in overload protection to prevent damage to the device.
- Design: The meter has a sturdy, desktop-style body and is powered by internal batteries.
Typical specifications:
Specifications may vary slightly among manufacturers; however, a common version of the MF-47 series includes the following ranges. Additionally, these ranges allow users to measure voltage, current, and resistance in different electrical applications.
- DC Voltage: 0.25V, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V
- AC Voltage: 10V, 50V, 250V, 500V, 1000V, 2500V
- DC Current: 0.05mA, 0.5mA, 5mA, 50mA, 500mA
- Resistance: R × 1, R × 10, R × 100, R × 1k, R × 10k
- Battery Test: 1.2V, 1.5V, 2V, 3V, 3.6V (on some models)
- Capacitance: C × 1, C × 10, C × 100, C × 1k, C × 10k (on some models)
- Audio Level: -10 to +22dB (on some models)
