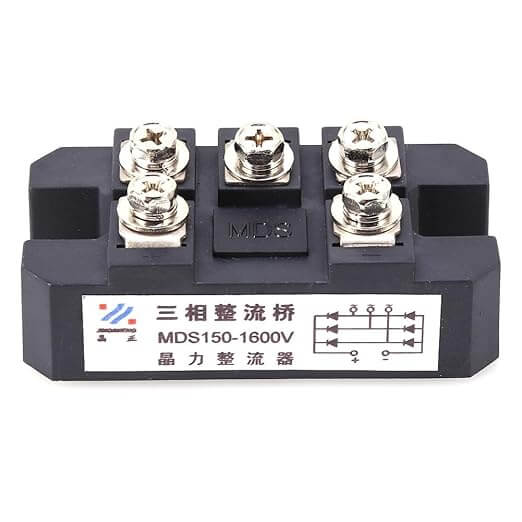

MDS150-16 Three Phase Diode Bridge Rectifier 150A 1600V

Key Features

• Handles up to 150A of current, making it ideal for heavy-duty applications.
• Supports high voltage up to 1600V, ensuring safe and efficient power conversion.
• Uses a three-phase bridge design for smooth AC to DC conversion.
• Offers high surge capability, which helps manage sudden voltage spikes.
• Features a compact and durable design for easy mounting and effective heat dissipation.

Applications

The MDS150-16 Three Phase Diode Bridge Rectifier is commonly used in:

• AC to DC power conversion in industrial power supplies.
• Rectification in motor drives and frequency inverters.
• Power control in welding machines and industrial automation.
• Battery charging and UPS (Uninterruptible Power Supply) systems.
• High-power DC circuits that require stable voltage regulation.

Related Products

Check out these components for building your power system:

• Rectifier Bridge with Heat Sink
• Semikron IGBT Module
• Voltage Regulator Module

Learn More

Find out more about three-phase rectifiers and their applications:

• Three Phase Diode Bridge Rectifier
• Electronics Tutorials: Diode Bridge Rectifiers

Related Video

Frequently Asked Questions

1. What does a three-phase diode bridge rectifier do?
It converts AC power to DC power, making it useful for motor drives, inverters, UPS systems, and industrial power applications.

2. Does this rectifier need a heat sink?
Yes, a heat sink is recommended to ensure proper heat dissipation and prevent overheating during high-power use.

3. Can I use this rectifier for battery charging?
Absolutely! The MDS150-16 works well in high-power battery charging systems and UPS power backups.

Package Includes

• 1 x MDS150-16 Three Phase Diode Bridge Rectifier
