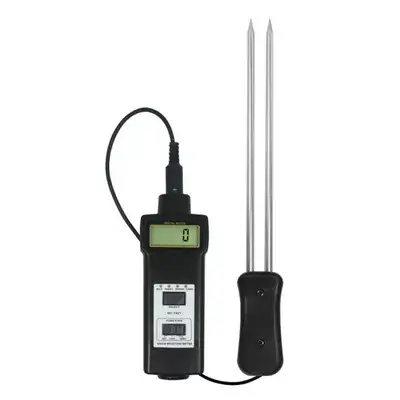

MD7821 Grain Moisture Meter In Pakistan

Description:

Key features:

• Measurement capabilities: The meter can measure both moisture content and temperature.
• Integrated probe: The single, integrated probe is suitable for one-handed operation.
• Microcomputer technology: It uses a microcomputer (CPU) to ensure accurate measurements.
• Automatic temperature compensation: The meter has an automatic environment temperature compensation function.
• Display: It features a large LCD with a backlight for easy reading, even in low light conditions.
• Low battery alarm: A built-in function alerts the user when the battery voltage is low.
• Construction: The device is designed with durable electronic components and a shell made of strong plastic, making it portable and easy to operate.

Specifications:

• Moisture measurement range: 8% to 30%.
• Temperature measurement range: -10°C to 55°C (14°F to 131°F).
• Moisture accuracy:
  • $\pm$0.6% (below 14%)
  • $\pm$0.8% (15–18%)
  • $\pm$1% (above 18%)
• Temperature accuracy: $\pm$0.8°C.
• Resolution: 0.1 for both moisture and temperature readings.
• Power supply: 4 x 1.5V AA batteries.
• Probe length: 368 mm.

How to use:

1. Select grain type: Use the grain selection function to choose the type of grain you are testing, such as paddy, rice, wheat, or corn.
2. Insert probe: Push the long, two-pin probe directly into the grain batch to be measured.
3. Read values: The moisture and temperature readings will be displayed on the LCD screen.
4. Interpret results: In some variations, coded LED lights provide a quick visual indication of the grain’s condition (e.g., whether decay is possible).

Applications:

• Acquisition: Checking moisture levels when buying grain.
• Storage: Monitoring grain to prevent spoilage and decay.
• Processing: Ensuring optimal moisture levels during milling and other processes.
• Allotment: Managing grain distribution.
