Description:

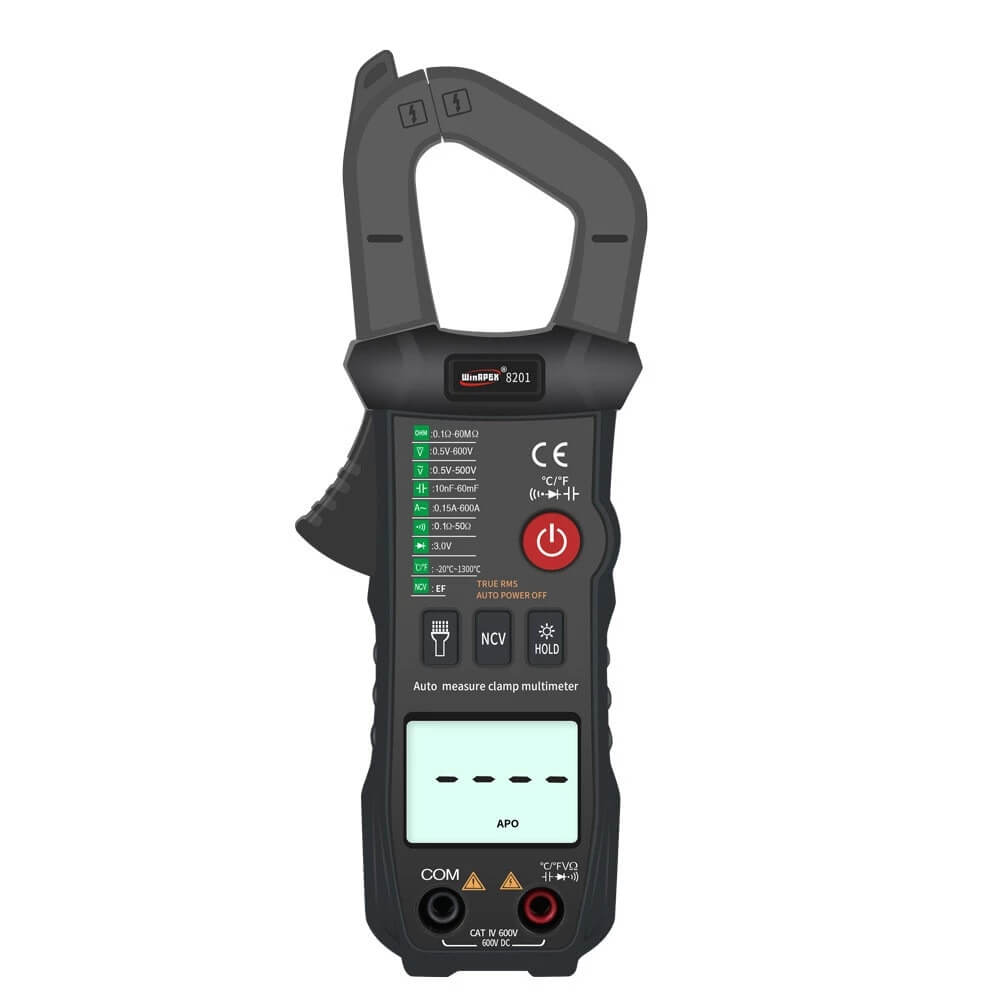

The WINAPEX ET8201 is an intelligent, automatic-identifying AC/DC clamp meter designed for both electrical professionals and DIY users. It provides a wide range of measurement functions with a simplified, automatic scanning feature. The device is also marketed by other brands like Winapex, sometimes referred to as a “fool’s clamp meter” due to its ease of use.
Key features:
- Automatic identification: The meter automatically detects and measures AC/DC voltage, AC/DC current, and resistance without you having to manually select the function on a dial.
- High measurement capacity:
- Measures AC and DC currents up to 600A.
- Measures AC voltage up to 500V and DC voltage up to 700V.
- True RMS: Provides accurate readings for both sinusoidal and non-sinusoidal waveforms, which is essential for working with modern electrical equipment.
- Multiple functions: In addition to its automatic functions, the meter can be manually switched to measure other parameters, including:
- Capacitance
- Diode
- Continuity
- Temperature (with a probe)
- Safety features: Includes overload protection to ensure user safety and a zero-fire line feature for identifying live wires.
- User-friendly design:
- Features a large, backlit LCD screen with a maximum display of 5999 counts.
- Comes in a portable, lightweight design for easy handling in various situations.
- A built-in data-hold function freezes the current reading on the display.
- Power: Operates on two AAA batteries.
Included accessories:
A typical package includes the ET8201 clamp meter, test leads, a temperature probe, a user manual, and a carrying bag
