Description:

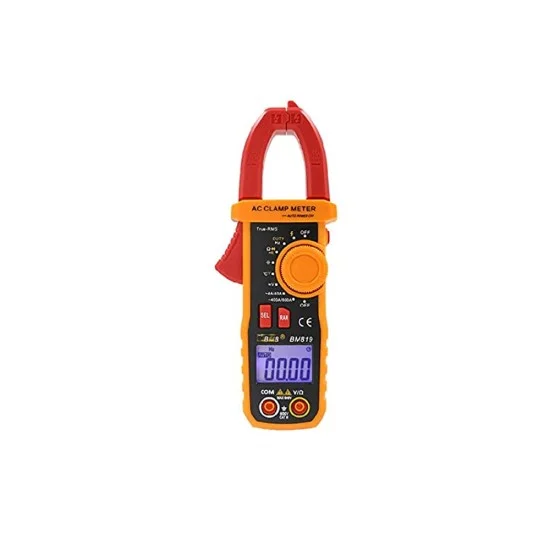

The SZBJ BM819 is a digital AC clamp meter that can measure AC current up to 600A without interrupting the circuit. It is also a versatile multimeter, measuring AC/DC voltage, resistance, capacitance, frequency, and temperature. The BM819 is certified with European Union (CE) directives and is rated for safety under EN61010-1, CAT.III 600V
Key features:
- True RMS measurement: Provides accurate readings for AC voltage and current on non-linear loads.
- Non-Contact AC Voltage (NCV) testing: Detects live wires without making contact, enhancing safety.
- Large jaw size: The 30mm jaw opening can clamp around large conductors.
- High display count: Features a 3999/9999 display count for high-resolution measurements.
- Data hold: Freezes the current reading on the display.
- Backlit LCD: The backlit display makes it easy to read measurements in dimly lit areas.
- Auto power off: Automatically shuts down after a period of inactivity to conserve battery life.
Measurement specifications:
- AC Current: Ranges include 4A, 40A, 400A, and 600A, with a ±(2%+10) accuracy.
- AC/DC Voltage: Measures up to 600V with an accuracy of ±(1.2%+5).
- Resistance: Measures up to 40 MΩ, with ±(1%+5) accuracy.
- Capacitance: Measures up to 10 mF with ±(3%+5) accuracy.
- Frequency and Duty Ratio: Measures frequency up to 40 MHz and duty ratio from 1% to 99%.
- Temperature: Includes a K-type probe to measure temperature from -50ºC to 1000ºC.
