Description:

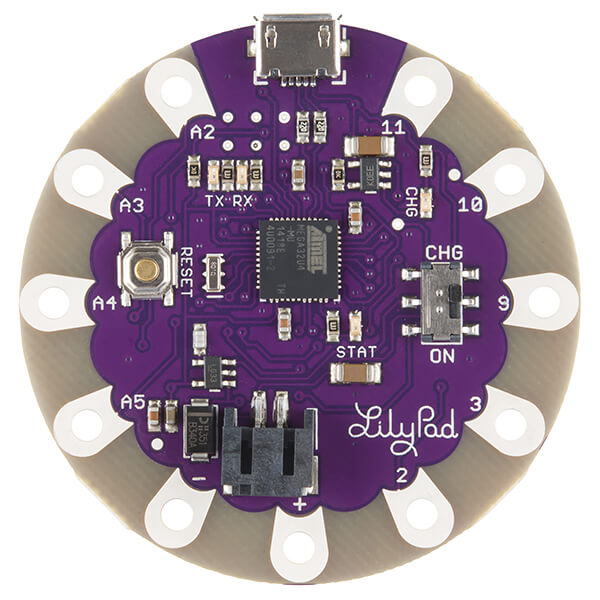

This is the LilyPad Arduino USB board, controlled by an ATmega32U4 with the Arduino bootloader. It has a built in power supply socket and an on/off switch with the only extra piece of hardware you need to program the LilyPad USB is a micro-USB cable since the new IC has built-in USB support. Any of our LiPo batteries can be plugged right into the JST socket to provide you with easy, on-the-go power. That LiPo battery is even rechargeable through the board, no more special external LiPo chargers required!
Just like the LilyPad Simple, this board runs at 3.3V. It features a JST socket so you can directly connect a Li-Po battery. An on-board power switch lets you turn it off when you don’t need it. The LilyPad Arduino USB simplifies your next sewable project by keeping things straightforward and giving you more room to work. You don’t need to sew a separate power supply.
Leah Buechley developed the LilyPad as wearable e-textile technology. She and SparkFun designed it cooperatively. Each LilyPad comes with large connecting pads so you can sew them into clothing. You can find various input, output, power, and sensor boards. They’re even washable!
Electronics Hub offers the Arduino LilyPad at the best prices online in Pakistan. Order now from Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad, and anywhere across the country.
Specifications of the LilyPad Arduino USB board
- Microcontroller: ATmega32u4
- Flash memory: 32 kB, of which 4 kB are used by the bootloader
- SRAM: 2.5 kB
- EEPROM: 1 kB
- Operating voltage: 3.3 V
- Input voltage: 3.8–5 V
- Digital input/output pins: 9
- PWM channels: 4
- Analogue input channels: 4
- Direct current per I/O pin: 40 mA
- Clock speed: 8 MHz
Resources for the LilyPad Arduino USB board:
Below you will find some documents that will help you get started with the LilyPad Arduino USB board:
LilyPad Arduino USB EAGLE files
Diagram of the LilyPad Arduino USB board
Package includes:
1xArduino LilyPad Arduino LilyPad USB ATmega32U4 Board
